Siemens 6FX50028QN041CA0 M12 Stik 1 stk Piece
EAN:
Fremstillingsnr.
Artikel nr.:
Konstruktion
Stik
Tilslutningsside B
IX-stik
Gevind-type
M12
Emballage-type
Piece
Type
6FX5002-8QN04-1CA0
Datablad (PDF)
Antal (stk.)
Du sparer
Emballagepris (ekskl. moms)
1
-
1.992,00 kr.
3
2% = 48,61 kr.
1.943,39 kr.
5
3% = 67,93 kr.
1.924,07 kr.
10
4% = 80,87 kr.
1.911,13 kr.
Mængderabatter varierer afhængigt af sælgeren
Du sparer 0,00 kr.
Antal
Total (1.992,00 kr. / stk.r)
1.992,00 kr.
ekskl. moms
Gratis fragt
Tekniske specifikationer
- Emballage-type
Piece
- Type
6FX5002-8QN04-1CA0
- Konstruktion
Stik
- Tilslutningsside B
IX-stik
- Tilslutningstværsnit (maks.)
0.38 mm²
- Udvendig Ø
9.7 mm
- Tilslutning
M12 stik
- Gevind-type
M12
- Gevind-type kabeltilslutning og montering
M12
- Max. tværsnit
0.38 mm²
- min. tværsnit
0.2 mm²
- Lukningstype
Speedcon
- Produc.-delnr.
6FX50028QN041CA0
- Indhold
1 stk
- Kabel-Ø
9.7 mm
- Kabel-Ø til
9.7 mm
- Kabel-Ø-område
9.7 mm (max)
- RoHS-godkendt
Ja
According to IEC/EN 60332-1-2
Polyvinyl chloride (PVC)
Other
- UKCA
Ja
Dokumenter og downloads
Datablad
Datablad 2875939 Siemens 6FX50028QN041CA0 M12 Stik 1 stk Piece
Instruktioner for brug og sikkerhed
Instruktioner for brug og sikkerhed 2875939 Siemens 6FX50028QN041CA0 M12 Stik 1 stk Piece
Beskrivelse

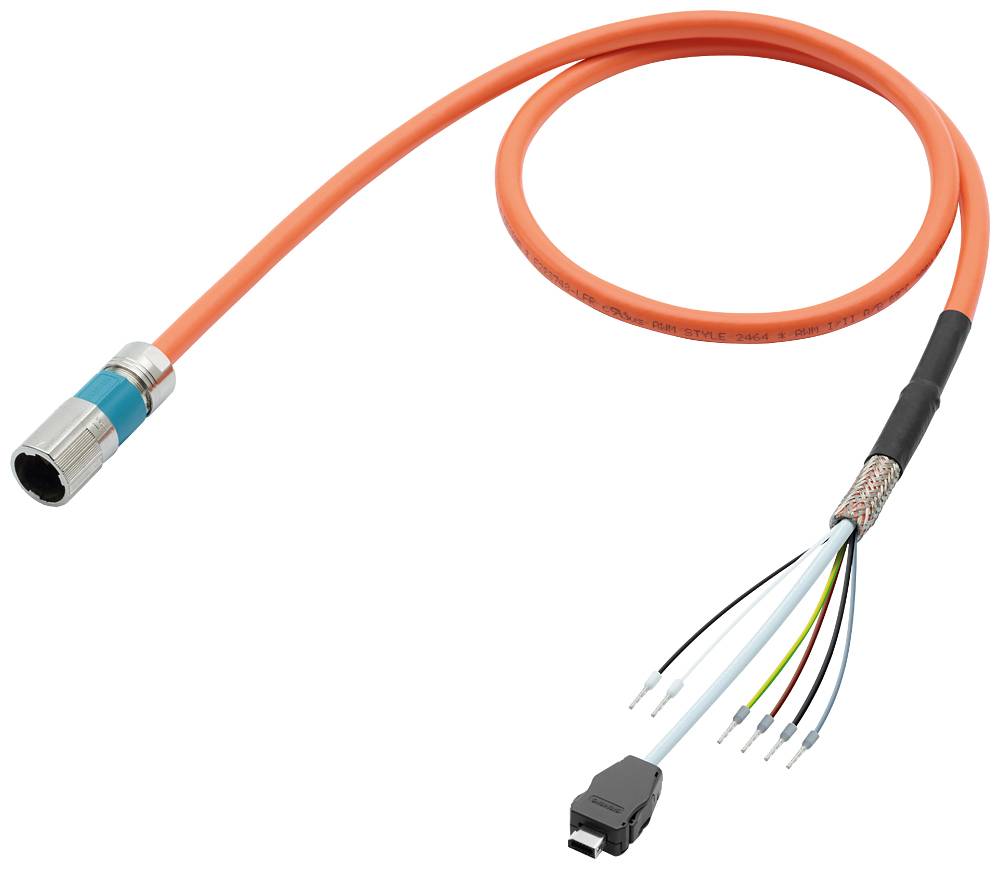

Single cable prefabricated 4G0.38+2x0.38+4x0.2 C SPEED-CONNECT M12 connector Cores with end sleeve Data cable with IX connector UL/CSA DESINA MOTION-CONNECT 500 Dmax.=9.7 mm, length(m)= One Cable Connection (OCC) MOTION-CONNECT, the simple, fast and safe connection for the SINAMICS S210 servo converter and the SIMOTICS S-1FK2 servo motor. The servo motor and servo converter are simply connected up by only one cable instead of the usual two or three cables. Thanks to this one-cable technology with SPEED-CONNECT quick release lock, the power supply, encoder connection and braking signal are brought together in a single cable. This results in a number of benefits, e.g. the time-saving layingof only one cable and the reduced installation space requirements. Another advantage is that only one cable has to be cleaned, especially in industries where hygiene requirements are high. The cable can be ordered in precise 10 cm lengths and has a motor-side M17 and/or M12 connection plug (smallest OCC connector worldwide). The compact motor with a small, rotatable connector enables simple installation even in confined spaces. The cable has IP20 degree of protection on the converter side and IP65 degree of protection on the motor side. Optimized connection technology via OCC (One Cable Connection)
