Antal (pakningsstørrelse 50 stk)
Total (37,80 kr. / stk.r)
1.890,00 kr.
inkl. moms
Gratis fragt
30 dages returret
Tekniske specifikationer
- Ledertværsnit / fintrådet / med terminalrør bearbejdning / maksimalt: 2.5 mm²
- ledertværsnit / fintrådet / med terminalrør bearbejdning / minimalt: 0.2 mm²
- ledertværsnit / flertrådet / maksimalt: 2.5 mm²
- ledertværsnit / flerledertværsnit / minimal: 0.14 mm²
- antal tråde / pr. klemniveau: 2
- fastgørelsesmåde: Din-skinne 35 mm
- brændbarhedsklasse iht. UL 94: V0
- højde / ved lavmonteringstypen: 36,5 mm
- klemmemål: 5,2 mm
- materiale / af isoleringslegemet: Termoplast
- position / tilslutningsklemmen: Øverst
- produktkomponent / nødvendig / afslutningsplade: Ja
- omgivelsestemperatur / under drift / maksimalt: 35 °C
- omgivelsestemperatur / under drift / minimal: -25 °C
- produktudstyr / pen-funktion: Ja
- Produkttype

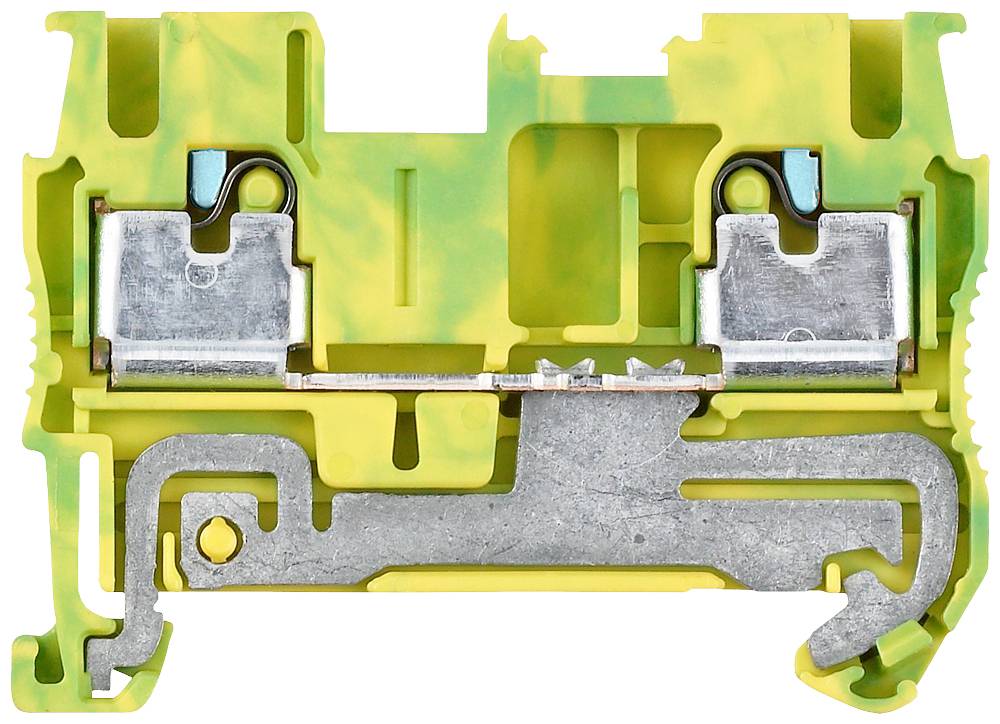

Gennemgangsklemme
- Tilslutning
Stiktilslutning
- Belægning
Terre
- Tværsnit fleksibel (min. )
0.14 mm²
- Tværsnit fleksibel (maks.)
2.5 mm²
- Tværsnit fast (min. )
0.14 mm²
- Tværsnit fast (maks.)
4 mm²
- Rækkeantal
1
- Producentfarve
Grøn-gul
- Afisoleringslængde (max.)
10 mm
- Produc.-delnr.
8WH60000CF07
- Indhold
50 stk
- Type
8WH6000-0CF07
- H
36.5 mm
- L
48.5 mm
- RoHS-godkendt
Ja
- Vægt
8.6 g
- Brændbarhedsklasse
V0
- Farve tilslutningselement
Grøn-gul
- Isoleringsmateriale
Termoplast
DIN rail (top hat rail) 35 mm
Other
5.15
49.1 mm
35.25 mm
48.5 m
V0
5.2 mm
36.5 mm
TRUE
Other
Other
TRUE
1
2
Other
- UKCA
Ja
Dokumenter og downloads
Datablad
Datablad 2264048 Siemens 8WH60000CF07 Gennemgangsklemme Stiktilslutning Belægning: Terre Grøn-gul 50 stk
Instruktioner for brug og sikkerhed
Instruktioner for brug og sikkerhed 2264048 Siemens 8WH60000CF07 Gennemgangsklemme Stiktilslutning Belægning: Terre Grøn-gul 50 stk
Beskrivelse
IPO terminals, Through-type terminals 2.5 mm2 Terminal block connection technology for various industrial applications and modern building installation from Siemens. Regardless of whether you decide on the screw-type, spring-loaded, push-in or quick connection: All of the connection technologies can be freely combined. The labeling and test accessories are standardized and can be used interchangeably. Many applications can be implemented in industry, functional and residential buildings with the terminal blocks from SIEMENS. This gives you access to the right connection technology for every connection system. Key features of the Siemens row terminals: 1. Permanently safe contact. 2. Easy to disconnect connection of electrical connections such as cables and wires. 3. Implementation of a large number of applications. 4. User-friendly and easy installation and connection technology. 5. Comprehensive and standardized accessories. 6. Reliable safety during installation with standard touch protection. 7. Optimized technology for your safety - only from Siemens. www.siemens.com/lowvoltage. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
tilbehør
(*Alle priser er ekskl. moms)Det nødvendige tilbehør er nødvendigt for at kunne bruge den beskrevne vare
