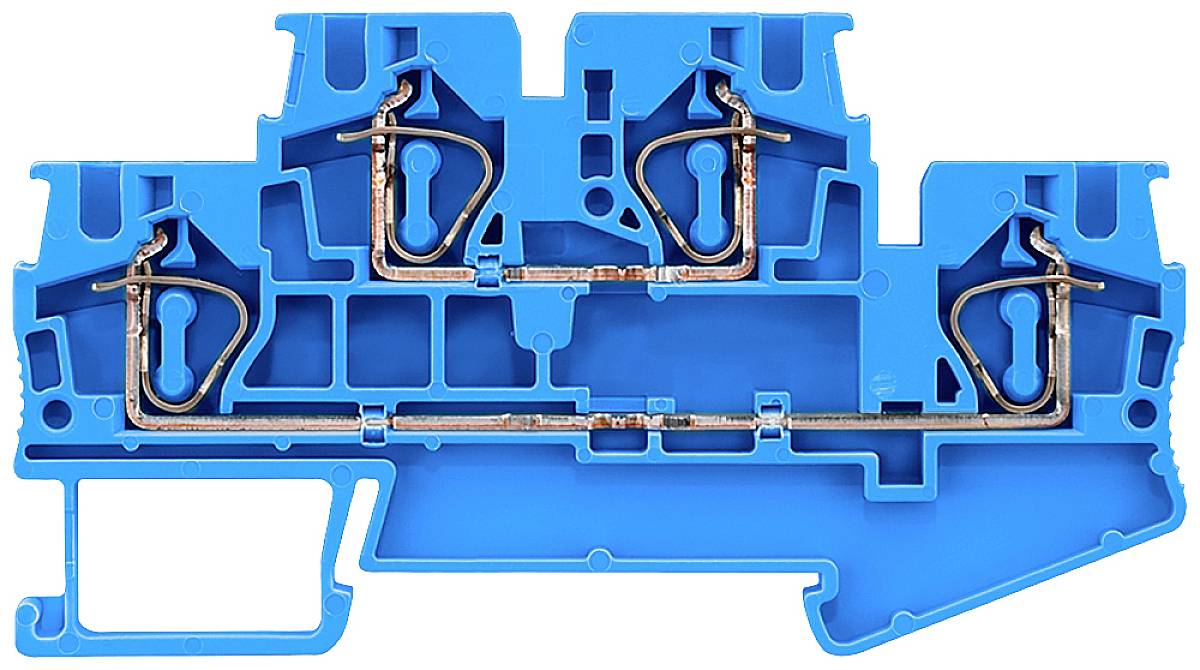

Siemens 8WH20200AG01 Dobbeltstokklemme 6.2 mm Fjedertræk-tilslutnng Belægning: dobbelt Blå 50 stk Piece
EAN:
Fremstillingsnr.
Artikel nr.:
Antal (pakningsstørrelse 50 stk)
Total (19,04 kr. / stk.r)
1.032,00 kr.
-8 %
952,00 kr.
ekskl. moms
Gratis fragt
30 dages returret
Højdepunkter og detaljer
Rækkeklemmer andre producenter
Vigtig information
Tekniske specifikationer
- Ledertværsnit / fintrådet / med terminalrør bearbejdning / maksimalt: 4 mm²
- ledertværsnit / fintrådet / med terminalrør bearbejdning / minimalt: 4 mm²
- ledertværsnit / flertrådet / maksimalt: 6 mm²
- ledertværsnit / flerledertværsnit / minimal: 6 mm²
- antal tråde / pr. klemniveau: 2
- fastgørelsesmåde: Din-skinne 35 mm
- brændbarhedsklasse iht. UL 94: V0
- højde / ved lavmonteringstypen: 47,5 mm
- klemmemål: 6,2 mm
- position / tilslutningsklemme: Øverst
- produktkomponent / nødvendig / afslutningsplade: nej
- omgivelsestemperatur / under drift / maksimalt: 55 °C
- omgivelsestemperatur / under drift / minimal: -25 °C.
- Emballage-type
Piece
- Produkttype
Dobbeltstokklemme
- Tilslutning
Fjedertræk-tilslutnng
- Belægning
dobbelt
- Tværsnit fleksibel (min. )
4 mm²
- Tværsnit fleksibel (maks.)
4 mm²
- Tværsnit fast (min. )
6 mm²
- Tværsnit fast (maks.)
6 mm²
- Klemmebredde
6.2 mm
- Rækkeantal
2
- Producentfarve
Blå
- Nominel strøm
32 A
- Nominel strøm - afrundet
32 A
- Nominel spænding
500 V
- Afisoleringslængde (max.)
10 mm
- Produc.-delnr.
8WH20200AG01
- Indhold
50 stk
- Type
8WH2020-0AG01
- H
47.5 mm
- L
83.5 mm
- RoHS-godkendt
Ja
- Vægt
16 g
- Brændbarhedsklasse
V0
- Farve tilslutningselement
Blå
DIN rail (top hat rail) 35 mm
Blue
83.68 mm
45.9 mm
500 V
83.5 m
V0
6.2 mm
47.5 mm
FALSE
Spring clamp connection
Spring clamp connection
2
2
FALSE
Other
30 A
FALSE
- UKCA
Ikke relevant
Dokumenter og downloads
Datablad
Datablad 2263916 Siemens 8WH20200AG01 Dobbeltstokklemme 6.2 mm Fjedertræk-tilslutnng Belægning: dobbelt Blå 50 stk Piece
Instruktioner for brug og sikkerhed
Instruktioner for brug og sikkerhed 2263916 Siemens 8WH20200AG01 Dobbeltstokklemme 6.2 mm Fjedertræk-tilslutnng Belægning: dobbelt Blå 50 stk Piece
Beskrivelse
Two-tier terminals with spring-loaded connection, Cross-section: 0.5-4 mm2, Width: 6.2mm, Color: blue Terminal block connection technology for various industrial applications and modern building installation from Siemens. Regardless of whether you decide on the screw-type, spring-loaded, push-in or quick connection: All of the connection technologies can be freely combined. The labeling and test accessories are standardized and can be used interchangeably. Many applications can be implemented in industry, functional and residential buildings with the terminal blocks from SIEMENS. This gives you access to the right connection technology for every connection system. Key features of the Siemens row terminals: 1. Permanently safe contact. 2. Easy to disconnect connection of electrical connections such as cables and wires. 3. Implementation of a large number of applications. 4. User-friendly and easy installation and connection technology. 5. Comprehensive and standardized accessories. 6. Reliable safety during installation with standard touch protection. 7. Optimized technology for your safety - only from Siemens.
