Antal (pakningsstørrelse 50 stk)
Total (10,40 kr. / stk.r)
520,00 kr.
ekskl. moms
30 dages returret
Højdepunkter og detaljer
Rækkeklemmer andre producenter
Vigtig information
Tekniske specifikationer
- Ledertværsnit / fintrådet / med terminalrør bearbejdning / maksimalt: 4 mm²
- ledertværsnit / fintrådet / med terminalrør bearbejdning / minimalt: 4 mm²
- ledertværsnit / flertrådet / maksimalt: 6 mm²
- ledertværsnit / flerledertværsnit / minimal: 6 mm²
- antal tråde / pr. klemniveau: 2
- fastgørelsesmåde: Din-skinne 35 mm
- brændbarhedsklasse iht. UL 94: V0
- klemmer-rastermål: 6,2 mm
- position / tilslutningsklemmen: Øverst
- produktkomponent / nødvendig / Afslutningsplade: nej
- omgivelsestemperatur / under drift / maksimalt: 55 °C
- omgivelsestemperatur / under drift / minimal: -25 °C.
- Emballage-type
Piece
- Produkttype
Gennemgangsklemme
- Særlige kendetegn:
sikker at røre ved
- Tilslutning
Fjedertræk-tilslutnng
- Tværsnit fleksibel (min. )
4 mm²
- Tværsnit fleksibel (maks.)
4 mm²
- Tværsnit fast (min. )
6 mm²
- Tværsnit fast (maks.)
6 mm²
- Klemmebredde
6.2 mm
- Rækkeantal
1
- Producentfarve
Sort
- Nominel strøm
40 A
- Nominel strøm - afrundet
40 A
- Nominel spænding
800 V
- Afisoleringslængde (max.)
10 mm
- Produc.-delnr.
8WH20000AG08
- Indhold
50 stk
- Type
8WH2000-0AG08
- RoHS-godkendt
Ja
- Vægt
9 g
- Brændbarhedsklasse
V0
- Farve tilslutningselement
Sort
DIN rail (top hat rail) 35 mm
Black
55.93 mm
35.3 mm
800 V
V0
6.2 mm
FALSE
Spring clamp connection
Spring clamp connection
1
2
FALSE
Other
32 A
FALSE
- UKCA
Ikke relevant
Dokumenter og downloads
Datablad
Datablad 2263892 Siemens 8WH20000AG08 Gennemgangsklemme 6.2 mm Fjedertræk-tilslutnng Sort 50 stk Piece
Instruktioner for brug og sikkerhed
Instruktioner for brug og sikkerhed 2263892 Siemens 8WH20000AG08 Gennemgangsklemme 6.2 mm Fjedertræk-tilslutnng Sort 50 stk Piece
Beskrivelse

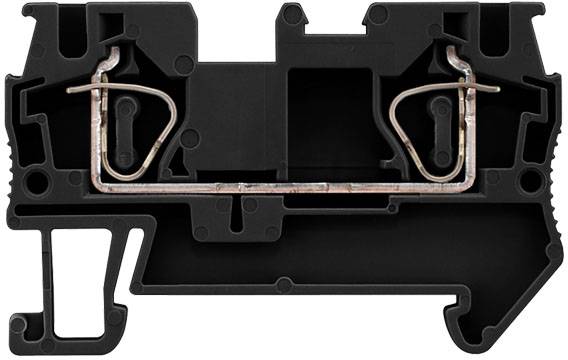

Through-type terminals with spring-loaded connection, Cross-section: 4 mm2, Width: 6.2mm, Color: black Terminal block connection technology for various industrial applications and modern building installation from Siemens. Regardless of whether you decide on the screw-type, spring-loaded, push-in or quick connection: All of the connection technologies can be freely combined. The labeling and test accessories are standardized and can be used interchangeably. Many applications can be implemented in industry, functional and residential buildings with the terminal blocks from SIEMENS. This gives you access to the right connection technology for every connection system. Key features of the Siemens row terminals: 1. Permanently safe contact. 2. Easy to disconnect connection of electrical connections such as cables and wires. 3. Implementation of a large number of applications. 4. User-friendly and easy installation and connection technology. 5. Comprehensive and standardized accessories. 6. Reliable safety during installation with standard touch protection. 7. Optimized technology for your safety - only from Siemens.
tilbehør
(*Alle priser er ekskl. moms)Det nødvendige tilbehør er nødvendigt for at kunne bruge den beskrevne vare
