Tekniske specifikationer

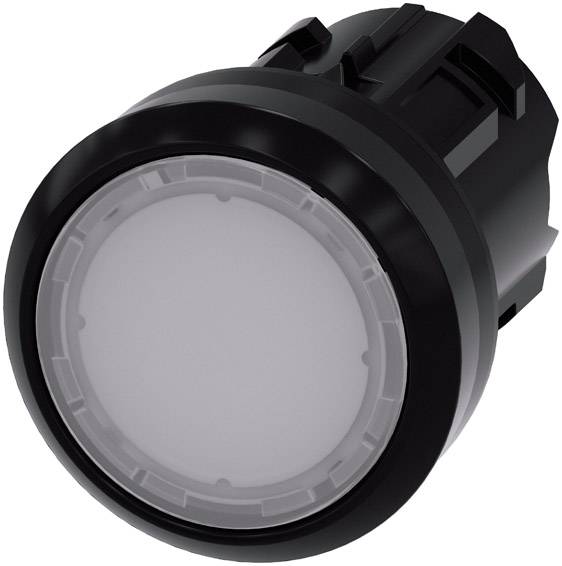

- Produkttype
Lystrykknap
- Kontakt/Tast-specifikationer
Betjeningsknap flad
Frontring plastic
- Funktioner
Tastende
- Belysningstype
Fladebelysning
- Lysfarve
hvid
- Tryk-motiv
Uden
- Tilslutning
Kontaktelement
LED-element
- Min. Temperatur
-25 °C
- Form
Rund
- Maks. temperatur
+70 °C
- Bredde
29.5 mm
- H
29.5 mm
- (Ø)
22 mm
- Mekanisk levetid
3000000
- Indbygning-dia.
22 mm
- Frontpladeudskæring
22 mm
IP66
IP67
IP69K
- Indhold
1 stk

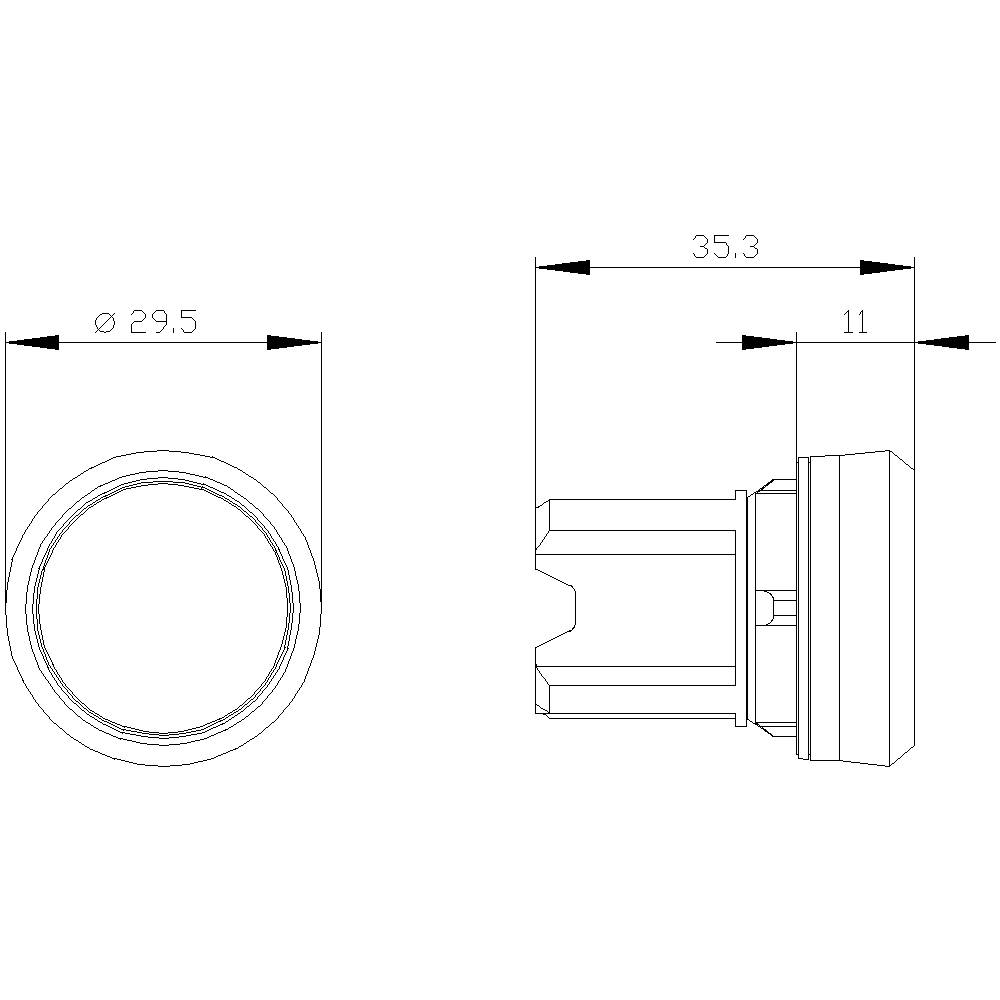

- Dim.
(Ø x H) 22 mm x 29.5 mm
- RoHS-godkendt
Ja
- Type
3SU1001-0AB60-0AA0
- Producentfarve
Hvid
- Chassisfarve
Hvid
- Aktiveringstype
Knap
- Knap-dia.
22 mm
- Frontplade maks.
29.5 x 29.5 mm
- Vægt
19 g
22.3 mm
White
TRUE
1
FALSE
FALSE
Black
Other
FALSE
Plastic
TRUE
Round
FALSE
Other
- UKCA
Ja
Dokumenter og downloads
Datablad
Datablad 1379569 Siemens 3SU10010AB600AA0 3SU1001-0AB60-0AA0 Lystrykknap Betjeningsknap flad, Frontring plastic Knap Hvid 1 stk
Instruktioner for brug og sikkerhed
Instruktioner for brug og sikkerhed 1379569 Siemens 3SU10010AB600AA0 3SU1001-0AB60-0AA0 Lystrykknap Betjeningsknap flad, Frontring plastic Knap Hvid 1 stk
Information
Information 1379569 Siemens 3SU10010AB600AA0 3SU1001-0AB60-0AA0 Lystrykknap Betjeningsknap flad, Frontring plastic Knap Hvid 1 stk
Beskrivelse
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.

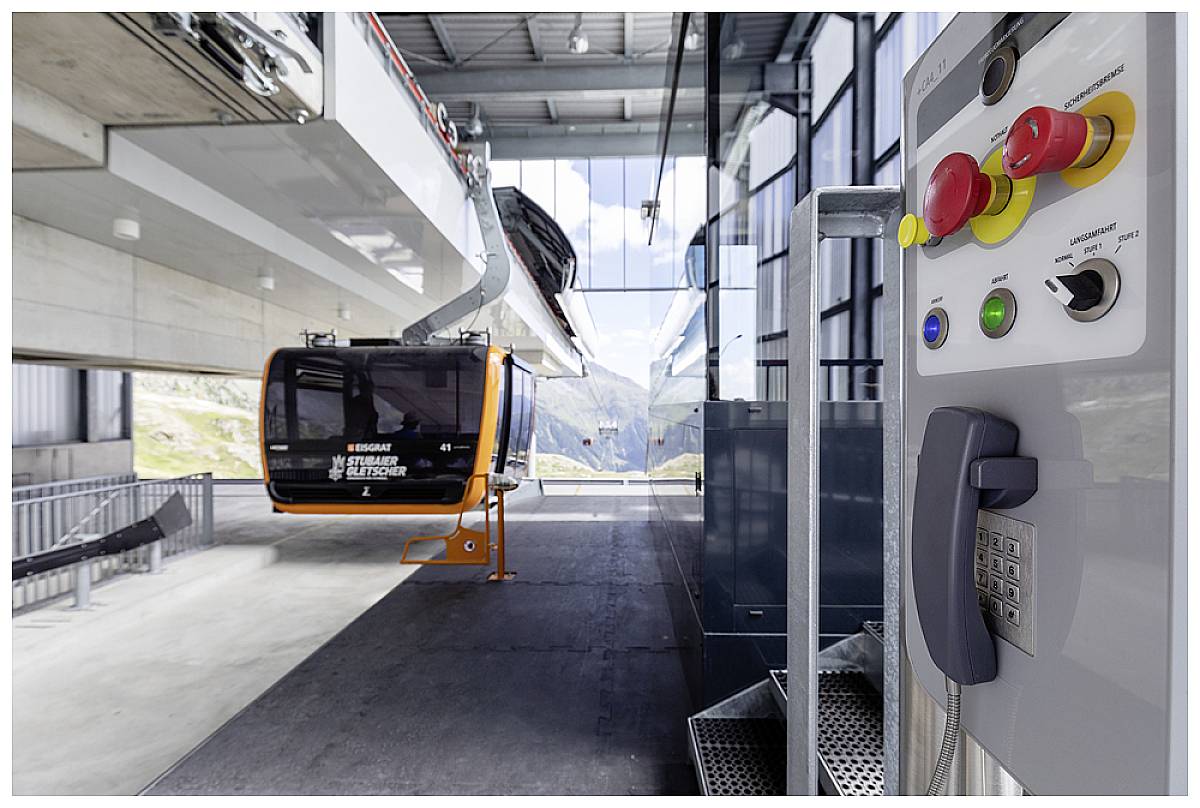

Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, illuminated/non-illuminated, with/without inscription, latching/momentary contact operation, various button and front ring heights.
Note: Single device, please order holders and modules separately.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
