Tekniske specifikationer
- Emballage-type
Piece
- Produkttype
Lystrykknap
- Kontakt/Tast-specifikationer
Betjeningsknap flad
Frontring metal
Højglans
- Belysningstype
Uden
- Aktiveringstype
Knap
- Lysfarve
hvid
- Producentfarve
Hvid
- Chassisfarve
Hvid
- Knap-dia.
22 mm
- Tryk-motiv
Uden
- Tilslutning
Kontaktelement
LED-element
- Form
Rund
- Frontpladeudskæring
22 mm
- Funktioner
Tastende
- Mekanisk levetid
3000000
- Indbygning-dia.
22 mm
IP66
IP67
IP69K
- Min. Temperatur
-25 °C
- Maks. temperatur
+70 °C

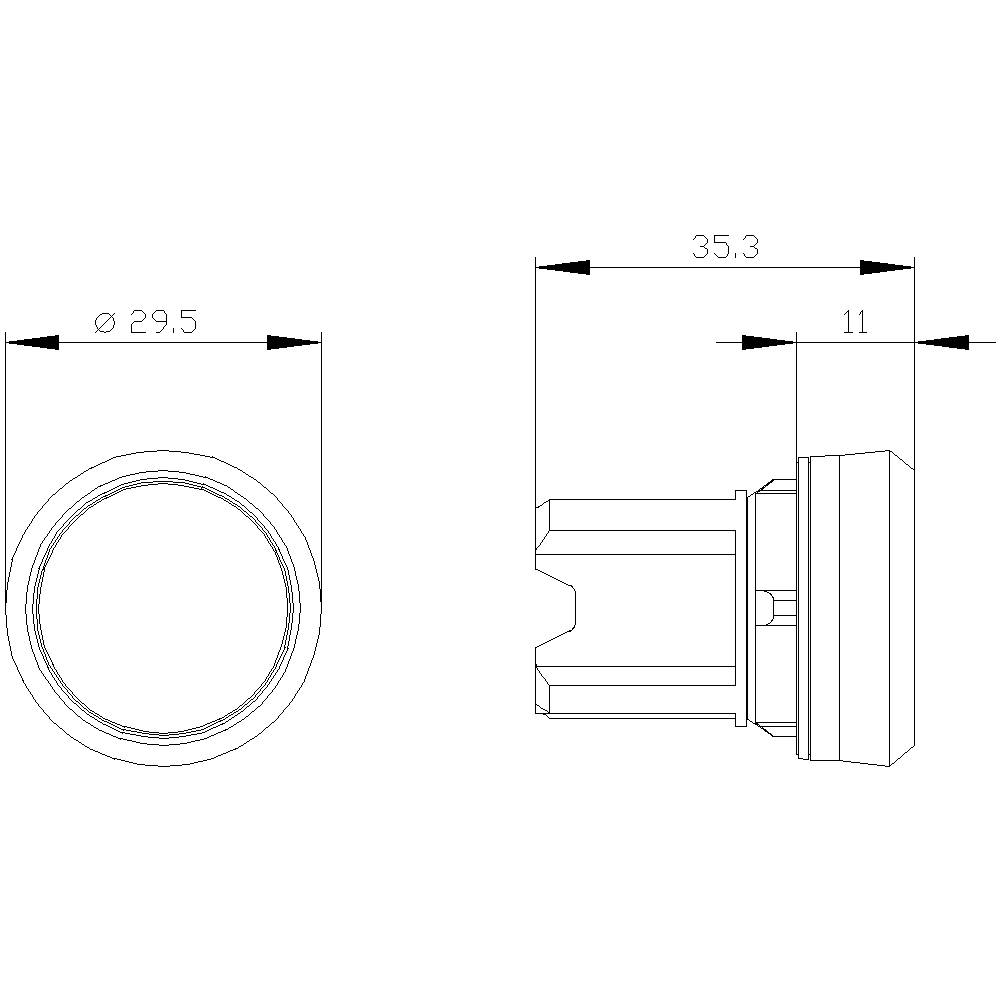

- Bredde
29.5 mm
- H
29.5 mm
- (Ø)
22 mm
- Indhold
1 stk
- Dim.
(Ø x H) 22 mm x 29.5 mm
- RoHS-godkendt
Ja
- Vægt
39 g
- D
35.3 mm
- Type
3SU1051-0AB60-0AA0
22.3 mm
White
TRUE
1
FALSE
FALSE
Chrome
Other
FALSE
Metal
TRUE
Round
FALSE
Other
- UKCA
Ja
Dokumenter og downloads
Datablad
Datablad 1379403 Siemens 3SU10510AB600AA0 3SU1051-0AB60-0AA0 Lystrykknap Betjeningsknap flad, Frontring metal, Højglans Knap Hvid 1 stk P
Instruktioner for brug og sikkerhed
Instruktioner for brug og sikkerhed 1379403 Siemens 3SU10510AB600AA0 3SU1051-0AB60-0AA0 Lystrykknap Betjeningsknap flad, Frontring metal, Højglans Knap Hvid 1 stk P
Information
Information 1379403 Siemens 3SU10510AB600AA0 3SU1051-0AB60-0AA0 Lystrykknap Betjeningsknap flad, Frontring metal, Højglans Knap Hvid 1 stk P
Beskrivelse
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, illuminated/non-illuminated, with/without inscription, latching/momentary contact operation, various button and front ring heights.
Note: Single device, please order holders and modules separately.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
