Siemens 3SU1001-6AA40-0AA0 Lysmelder flad Grøn 1 stk

1/4
Lignende billede
Datablad (PDF)
EAN:
Fremstillingsnr.
Artikel nr.:
Levering fre. 30. okt.

9 stk.

Antal
Total (59,00 kr. / stk.r)
59,00 kr.
prav.tax.untaxed inkl. moms
ekskl. 69,00 kr.
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
Uden yderligere fragtomkostninger
Kun 9 stk. tilbage på lager
30 dages returret

Højdepunkter og detaljer

Meldelamper

Tekniske specifikationer

Produkttype

Lysmelder

Variant

Metal

Producentfarve

Grøn

Indbygning-dia.

22 mm

n.rel. (EENRPS00)

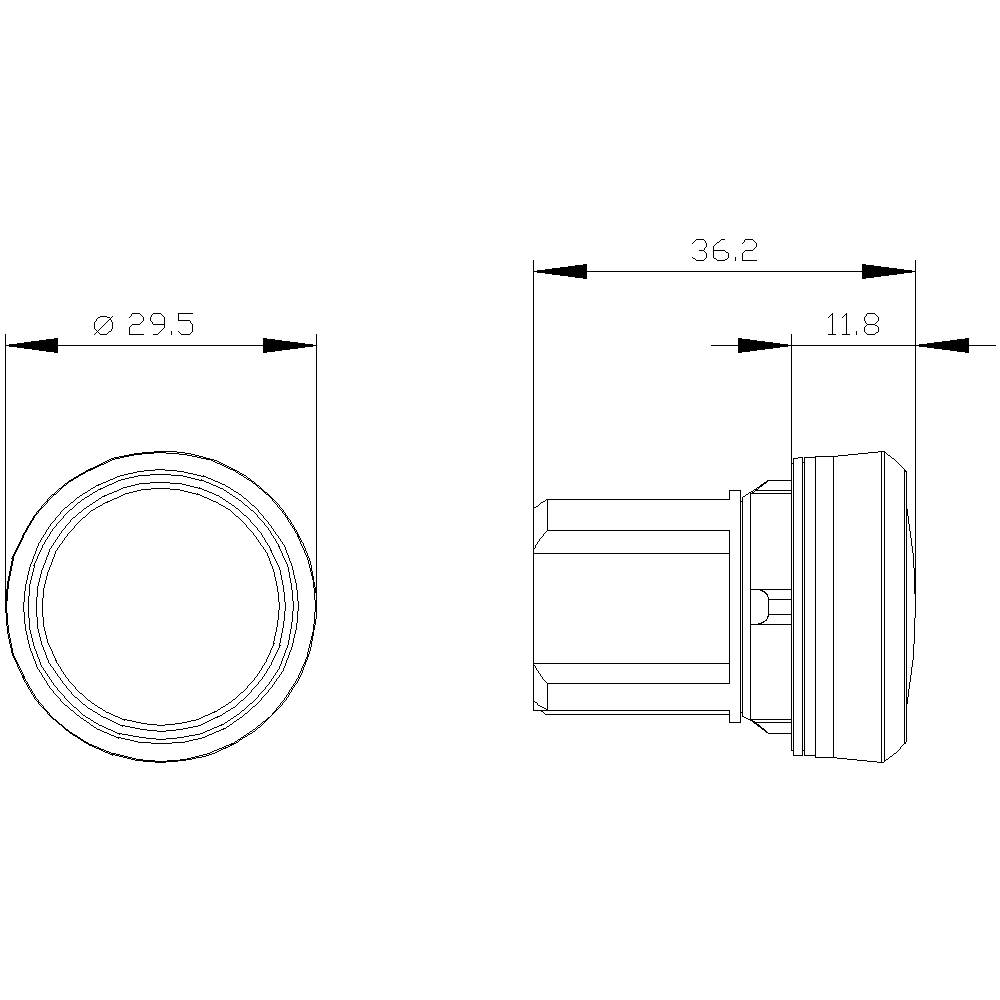

Dim.

(Ø x H) 29.45 mm x 29.5 mm

Tilslutning

LED-element

Vægt

12.00

Indhold

1 stk

Bredde

29.5 mm

H

29.5 mm

(Ø)

29.45 mm

RoHS-godkendt

Ja

Kontakt/Tast-specifikationer

flad

IP66

IP67

IP69/IP69K

Maks. temperatur

+70 °C

Min. Temperatur

-25 °C

Type

3SU1001-6AA40-0AA0

22.3 mm

Other

Other

IP67/IP69K

29.5 mm

11.8 mm

Other

FALSE

Round

1

High

UKCA

Ja

Dokumenter og downloads

Datablad

Datablad 1379577 Siemens 3SU1001-6AA40-0AA0 Lysmelder flad Grøn 1 stk

Instruktioner for brug og sikkerhed

Instruktioner for brug og sikkerhed 1379577 Siemens 3SU1001-6AA40-0AA0 Lysmelder flad Grøn 1 stk

Information

Information 1379577 Siemens 3SU1001-6AA40-0AA0 Lysmelder flad Grøn 1 stk

Beskrivelse

Indicator lights, 22 mm, round, plastic, green, lens, smooth Indicator lights SIRIUS ACT for signaling switching states or faults in systems with high luminosity, thanks to energy-efficient LED technology.Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in three modern design lines of rugged genuine metal and high-grade plastic.An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.Versions available: Several colors, different voltage variants.Note: Single device, please order holders and modules separately.SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
