Siemens Halvlederrelæ 3RF22553AB45 55 A Koblingsspænding (max.): 600 V/AC Vekslende ved nulspænding 1 stk
EAN:
Fremstillingsnr.
Artikel nr.:
Produkttype
Halvlederrelæ
Styrespænding (min.)
4 V/DC
Styrespænding (maks)
30 V/DC
Koblingsspænding (max.)
600 V/AC
Last-Strøm (maks.)
55 A
Datablad (PDF)
Antal
Total (1.112,00 kr. / stk.r)
1.112,00 kr.
ekskl. moms
Gratis fragt
30 dages returret
Højdepunkter og detaljer
Halvlederrelæer

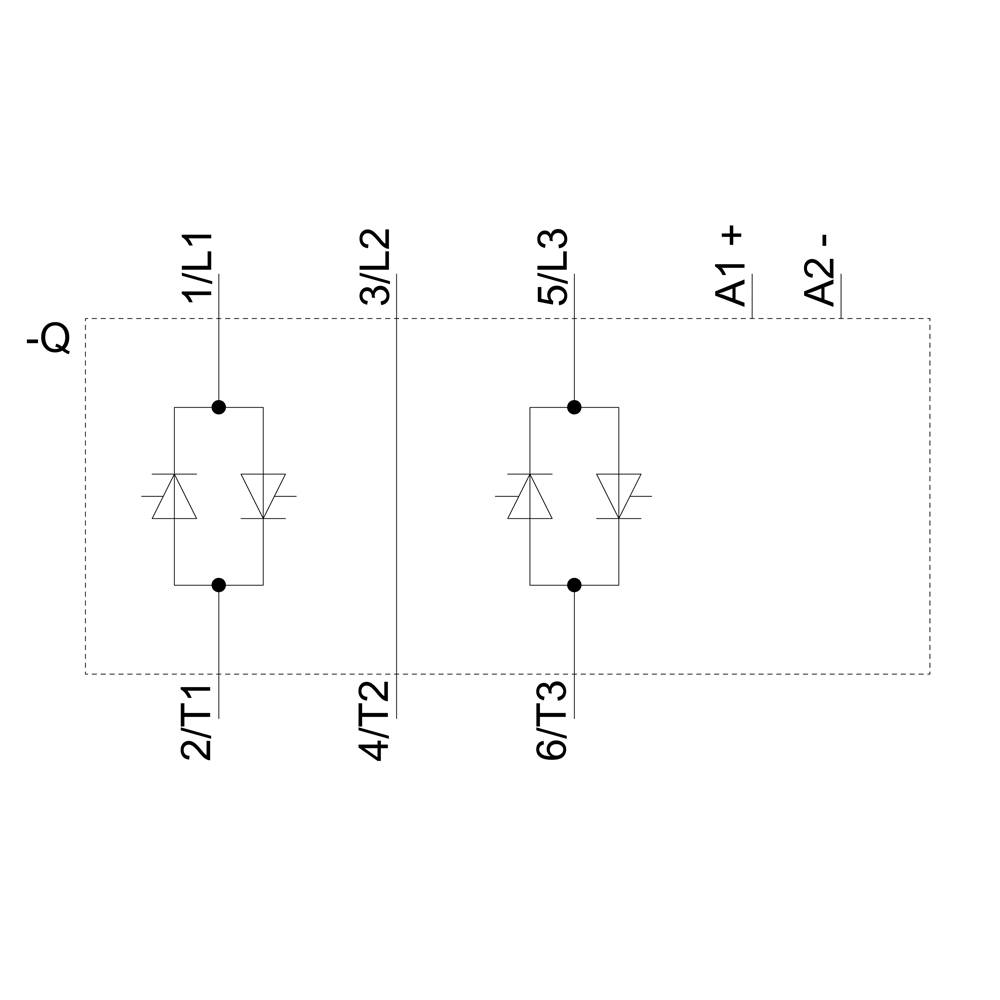

- 2-faset styres
- OBS! Denne produkttekst er maskinoversat.
Tekniske specifikationer
- Udgangssignal: 5 - 33 V/DC/10 A
- Indgangssignal: 24 V/DC/0,4 W
- Produkttype
Halvlederrelæ
- Type
3RF2255-3AB45
- Koblingsmåde
Vekslende ved nulspænding
- Tilslutning
Øske 4 mm
- Styrespænding (min.)
4 V/DC
- Styrespænding (maks)
30 V/DC
- Styrespænding-område
4 - 30 V/DC
- Styrestrøm (maks)
15 mA
- Strømspids (maks.)
600 A
- Koblingsspænding (min. )
48 V/AC
- Koblingsspænding (max.)
600 V/AC
- Last-Strøm (maks.)
55 A
- Kontakttype
2 x sluttekontakt
- Min. Temperatur
-25 °C
- Maks. temperatur
+60 °C
IP00

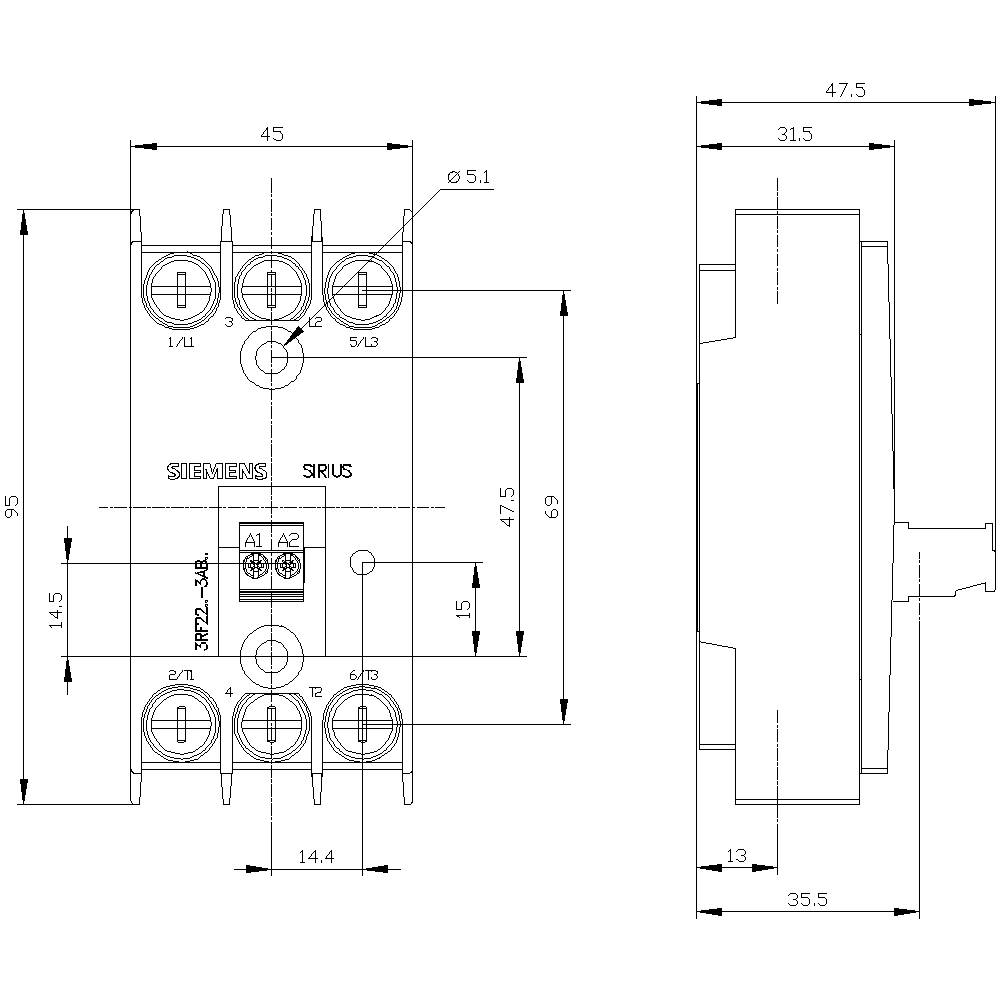

- Bredde
45 mm
- H
95 mm
- D
47 mm
- Vægt
151 g
- RoHS-godkendt
Ja
- Indhold
1 stk
3
TRUE
55 A
DC
50 A
- UKCA
Ja
Dokumenter og downloads
Datablad
Datablad 1430868 Siemens Halvlederrelæ 3RF22553AB45 55 A Koblingsspænding (max.): 600 V/AC Vekslende ved nulspænding 1 stk
Datablad 1430868 Siemens Halvlederrelæ 3RF22553AB45 55 A Koblingsspænding (max.): 600 V/AC Vekslende ved nulspænding 1 stk
Instruktioner for brug og sikkerhed
Instruktioner for brug og sikkerhed 1430868 Siemens Halvlederrelæ 3RF22553AB45 55 A Koblingsspænding (max.): 600 V/AC Vekslende ved nulspænding 1 stk
Beskrivelse
Semiconductor relay, 3-phase 3RF2 55 A / 40 °C 48-600 V / 4-30 V DC 2-phase controlled Ring cable connection Blocking voltage 1200 V solid-state relay SIRIUS 3RF22 for switching resistive/inductive loads, e.g. of heaters or valves in a bottling plant.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. The compact design saves space on the cooling surface. The solid-state relays can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state relays are available as single-phase devices in two widths, or as three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. The compact design saves space on the cooling surface. The solid-state relays can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state relays are available as single-phase devices in two widths, or as three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
