Siemens Halvlederrelæ 3RF21903AA02 90 A Koblingsspænding (max.): 230 V/AC Vekslende ved nulspænding 1 stk
EAN:
Fremstillingsnr.
Artikel nr.:
Emballage-type
Piece
Produkttype
Halvlederrelæ
Styrespænding (min.)
15 V/DC
Styrespænding (maks)
24 V/DC
Koblingsspænding (max.)
230 V/AC
Datablad (PDF)
Antal
Total (552,00 kr. / stk.r)
552,00 kr.
ekskl. moms
30 dages returret
Tekniske specifikationer
- Emballage-type
Piece
- Produkttype
Halvlederrelæ
- Type
3RF2190-3AA02
- Koblingsmåde
Vekslende ved nulspænding
- Tilslutning
Øsken 3 mm
Øsken 5 mm
- Styrespænding (min.)
15 V/DC
- Styrespænding (maks)
24 V/DC
- Styrespænding-område
15 - 24 V/DC
- Styrestrøm (maks)
15 mA
- Strømspids (maks.)
1150 A
- Koblingsspænding (min. )
24 V/AC
- Koblingsspænding (max.)
230 V/AC
- Last-Strøm (maks.)
90 A
- Udgangsspænding (min.)
24 V
- Udgangsspænding (maks.)
230 V/AC
- Udgangsstrøm max.
90 A
- Kontakttype
1 x sluttekontakt
- Min. Temperatur
-25 °C
- Maks. temperatur
+60 °C
IP00

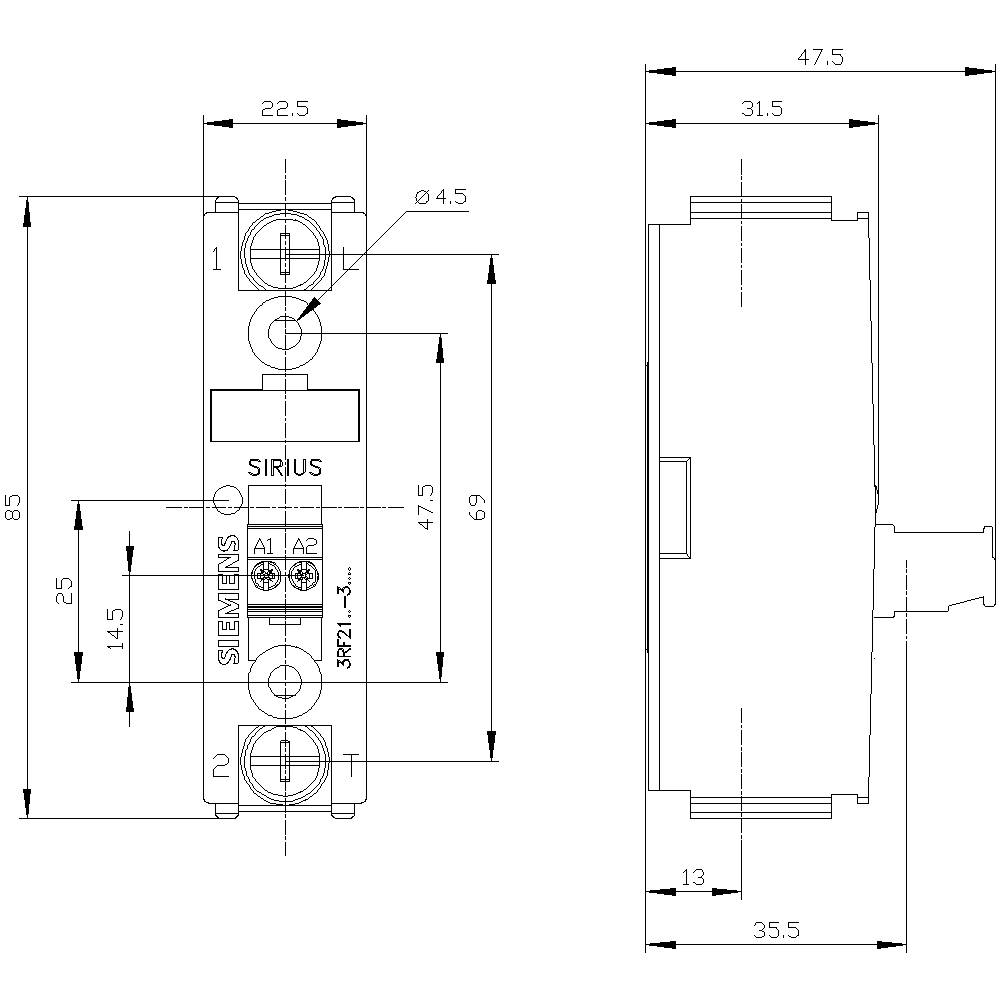

- Bredde
22.5 mm
- H
85 mm
- D
48 mm
- Vægt
70 g
- RoHS-godkendt
Ja
- Kontinuerlig strøm (maks.)
90 A
- Indhold
1 stk
- Nominel spændingsstyring
24 V/DC
1
TRUE
90 A
DC
88 A
- UKCA
Ja
Dokumenter og downloads
Datablad
Datablad 1430822 Siemens Halvlederrelæ 3RF21903AA02 90 A Koblingsspænding (max.): 230 V/AC Vekslende ved nulspænding 1 stk
Instruktioner for brug og sikkerhed
Instruktioner for brug og sikkerhed 1430822 Siemens Halvlederrelæ 3RF21903AA02 90 A Koblingsspænding (max.): 230 V/AC Vekslende ved nulspænding 1 stk
Beskrivelse

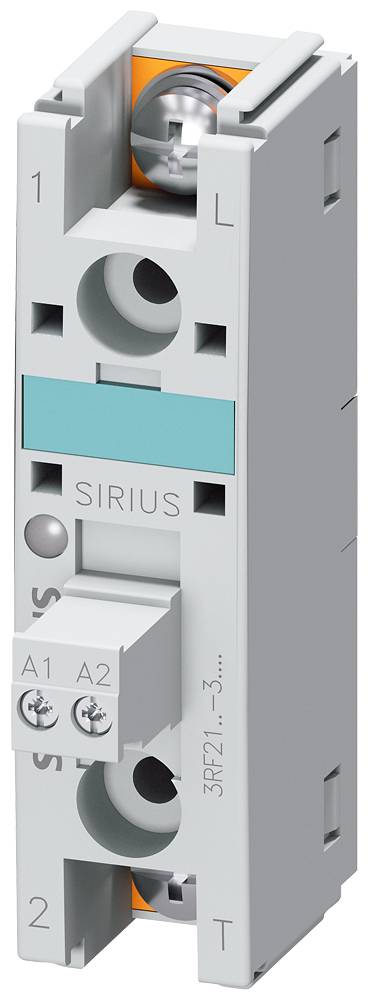

Semiconductor relay, 1-phase 3RF2 Overall width 22.5 mm, 90 A 24-230 V / 24 V DC Ring cable connection solid-state relay SIRIUS 3RF21 for switching resistive/inductive loads, e.g. of heaters or valves in a bottling plant.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. The compact design saves space on the cooling surface. The solid-state relays can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state relays are available as single-phase devices in two widths, or as three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. The compact design saves space on the cooling surface. The solid-state relays can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state relays are available as single-phase devices in two widths, or as three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
