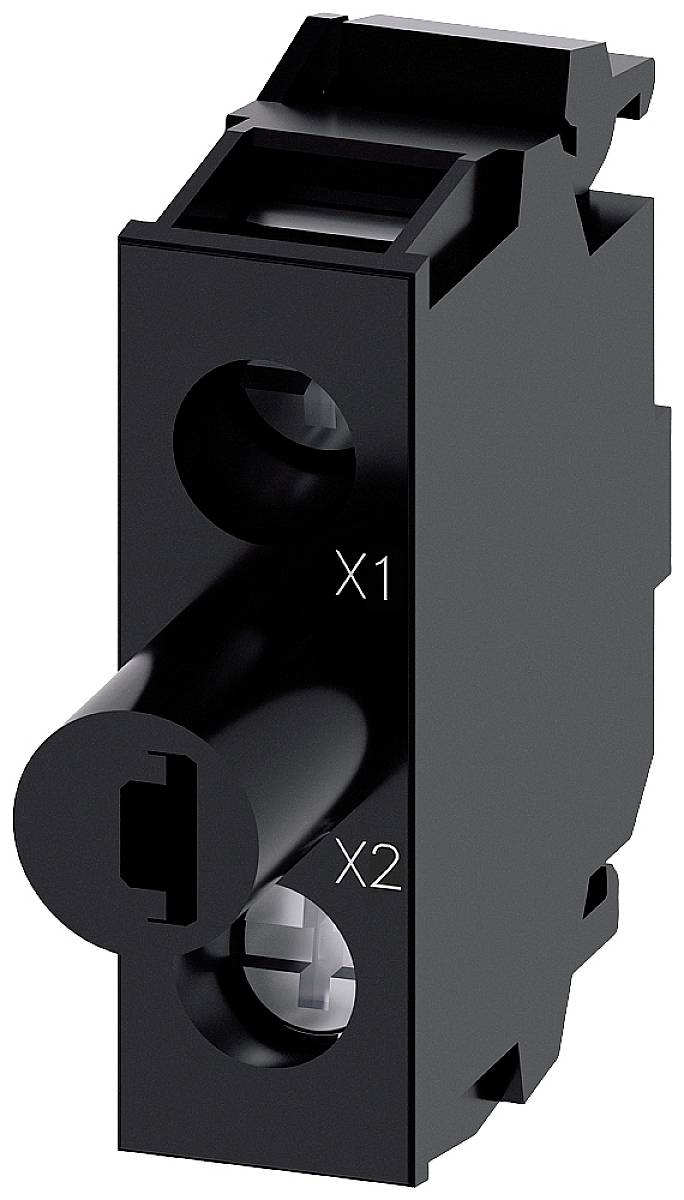

Siemens 3SU1401-2BB40-1AA0 LED-modul Til fastgørelse i jorden Grøn 24 V DC/AC 5 stk
EAN:
Fremstillingsnr.
Artikel nr.:
Datablad (PDF)
1 Sæt
Antal (Sæt)
Du sparer
Emballagepris (ekskl. moms)
1
-
295,20 kr.
3
3% = 9,59 kr.
285,61 kr.
5
5% = 13,43 kr.
281,77 kr.
10
5% = 15,97 kr.
279,23 kr.
25
6% = 18,86 kr.
276,34 kr.
Mængderabatter varierer afhængigt af sælgeren
Du sparer 0,00 kr.
Antal (pakningsstørrelse 5 stk)
Total (59,04 kr. / stk.r)
295,20 kr.
ekskl. moms
Kun 1 Sæt tilbage på lager
Tekniske specifikationer
- Pærens type: LED
- Produktkomponent / diode: Ja
- Produktkomponent / lyskilde: Ja
- Svingningsstyrke 10... 500 Hz: 5g
- Tilspændingsmoment/ved skruetilslutning/min.: 0,8 Nm
- Tilspændingsmoment/ved skruetilslutning/maks.: 0,9 Nm
- Type af efterfølgende ledertværsnit / ved AWG-ledninger: 2x (18... 14-de)
- Type ledertværsnit / enkel- / terminalrør med bearbejdning: 2x (0,5... 0,75 mm²)
- Type ledertværsnit / enkel tråd / terminalrør uden bearbejdning: 2x (1,0... 1,5 mm²)
- Type ledertværsnit / fintrådet / terminalrør med bearbejdning: 2x (0,5... 1,5 mm²)
- Type ledertværsnit / fintrådet / terminalrør uden bearbejdning: 2x (1,0... 1,5 mm²)
- Tilkoblingsstrøm maks. 2 A
- Isolationsspænding: 320 V
- Lysstyrke minimum: 900 mcd
- Lysstyrke maks. 1400 mcd
- Tilsmudsningsgrad: 3
- Produkttype
LED-modul
- Kontakt/Tast-specifikationer
Til fastgørelse i jorden
- Tilslutning
Skruer
- Variant
med integreret LED
- Lysfarve
Grøn
- Koblingsspænding
24 V DC/AC
- Brydestrøm (max.)
25 mA
IP20
IP40
- Holdespænding
4 kV
- Min. Temperatur
-25 °C
- Maks. temperatur
+70 °C
- Bredde
9.8 mm
- H
33.2 mm
- Elektrisk levetid
100000
- Monteringsmåde
Gulvmontage
- Indhold
5 stk

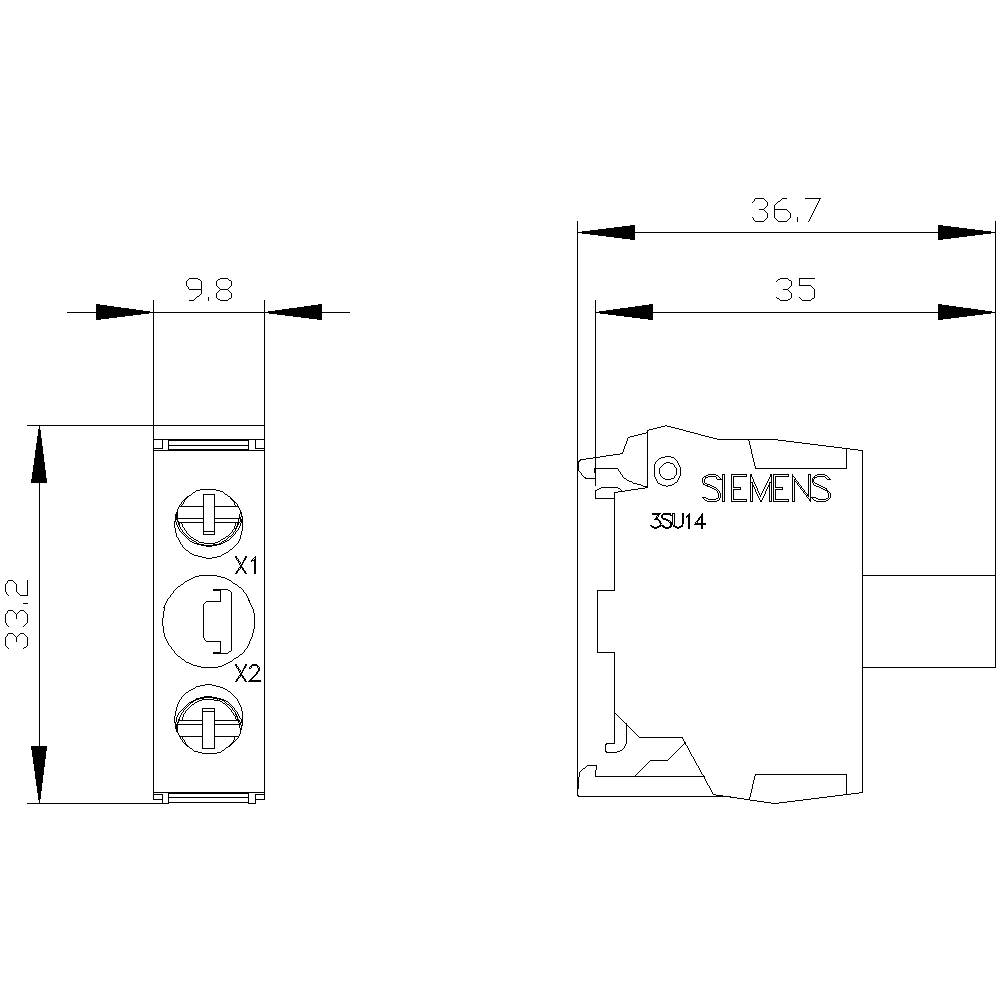

- Dim.
(B x H x T) 9.8 x 33.2 x 29.4 mm
- RoHS-godkendt
Ja
- D
29.4 mm
- Type
3SU1401-2BB40-1AA0
- Inkl. belysningsmiddel
Ja
None
FALSE
FALSE
TRUE
Green
LED
TRUE
Screw connection
AC/DC
- UKCA
Ja
Dokumenter og downloads
Datablad
Datablad 2262287 Siemens 3SU1401-2BB40-1AA0 LED-modul Til fastgørelse i jorden Grøn 24 V DC/AC 5 stk
Instruktioner for brug og sikkerhed
Instruktioner for brug og sikkerhed 2262287 Siemens 3SU1401-2BB40-1AA0 LED-modul Til fastgørelse i jorden Grøn 24 V DC/AC 5 stk
Beskrivelse
LED module with integrated LED 24 V AC/DC, green, screw terminal, for floor mounting, Minimum order quantity 5 or a multiple thereof LED module SIRIUS ACT for illuminating SIRIUS ACT pushbuttons and indicator lights with high luminosity thanks to energy efficient LED technology.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, various voltage variants, various types of connection and installation.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
