Siemens 3SU1400-1AA10-1FA0 Kontaktmodul 500 V DC/AC Passer til mærkerne (relæ): Siemens Piece 1 stk
EAN:
Fremstillingsnr.
Artikel nr.:
Produkttype
Kontaktmodul
Poltal
2-polet
Nominel spænding
500 V DC/AC
Tilslutning
Skruer
Emballage-type
Piece
Datablad (PDF)
1 Sæt
Antal (Sæt)
Du sparer
Emballagepris (ekskl. moms)
1
-
103,20 kr.
3
6% = 17,10 kr.
97,50 kr.
5
8% = 40,00 kr.
95,20 kr.
10
9% = 95,00 kr.
93,70 kr.
25
11% = 280,50 kr.
91,98 kr.
50
13% = 656,00 kr.
90,08 kr.
Mængderabatter varierer afhængigt af sælgeren
Du sparer 0,00 kr.
Antal
Total (103,20 kr. / stk.r)
103,20 kr.
ekskl. moms
Kun 1 Sæt tilbage på lager
Tekniske specifikationer
- Startfrekvens / maks. [1/h]: 3600
- Produktfunktion / tvungen åbning: Ja
- Anvendelsesområde: Til kobling af strømkredse
- Tilspændingsmoment/ved skruetilslutning/min.: 0,8 Nm
- Tilspændingsmoment/ved skruetilslutning/maks.: 0,9 Nm
- Stødspændingsstyrke: 6 kV
- Tilsmudsningsgrad: 3
- Egnet til integration / tryk-valgknap: Ja
- Egnethed til integration / frontelement: Ja
- Egnethed til integration/hængekalv: Ja
- Egnethed til integration/hængeknap: Ja
- Beskyttelsesklasse IP/tilslutningsklemme: IP20, klemskrue aktiveret
- Beskyttelsesklasse IP/af kabinettet: IP40
- Udførelse af kontakt/hjælpekontakter: Sølvlegering
- Isolationsspænding: 500 V
- Termisk strøm: 10 A.
- Type af efterfølgende ledertværsnit / ved AWG-ledninger: 2x (18... 14-de)
- Type ledertværsnit / enkel- / terminalrør med bearbejdning: 2x (0,5... 0,75 mm²)
- Type ledertværsnit / enkel tråd / terminalrør uden bearbejdning: 2x (1,0... 1,5 mm²)
- Type ledertværsnit / fintrådet / terminalrør med bearbejdning: 2x (0,5... 1,5 mm²)
- Type ledertværsnit / fintrådet / terminalrør uden bearbejdning: 2x (1,0... 1,5 mm²)
- Emballage-type
Piece
- Produkttype
Kontaktmodul
- Type
3SU1400-1AA10-1FA0
- Poltal
2-polet
- Kontaktmateriale
Sølvlegering

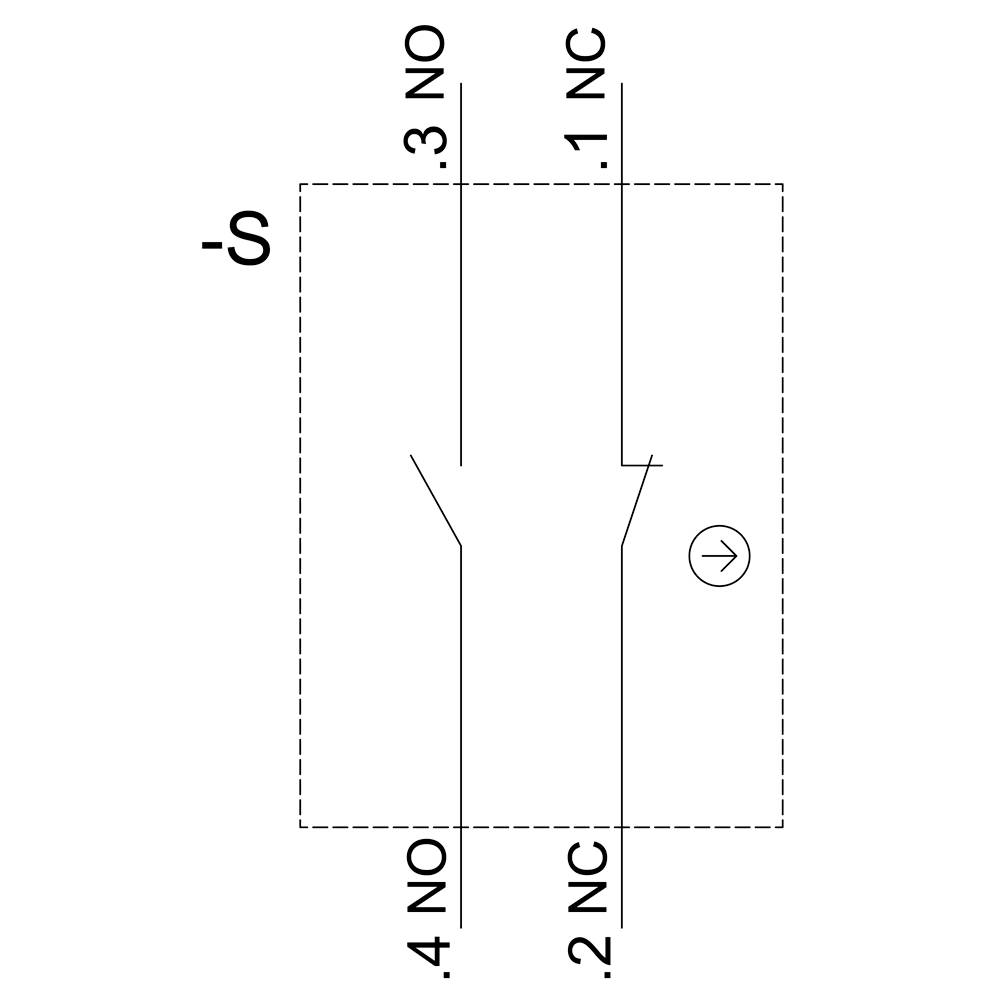

- Hjælpekontakttype
1 x sluttekontakt
1 x brydekontakt
- Nominel spænding
500 V DC/AC
- Koblingsspænding (max.)
500 V DC/AC
- Kontinuerlig strøm (maks.)
10 A
- Passer til mærkerne
Siemens
- Passer til serie
Siemens Sirius serie
- Monteringstype
Frontmontering
- Tilslutning
Skruer
- Elektrisk levetid
10000000
- Mekanisk levetid
10000000
- Min. Temperatur
-25 °C
- Maks. temperatur
+70 °C

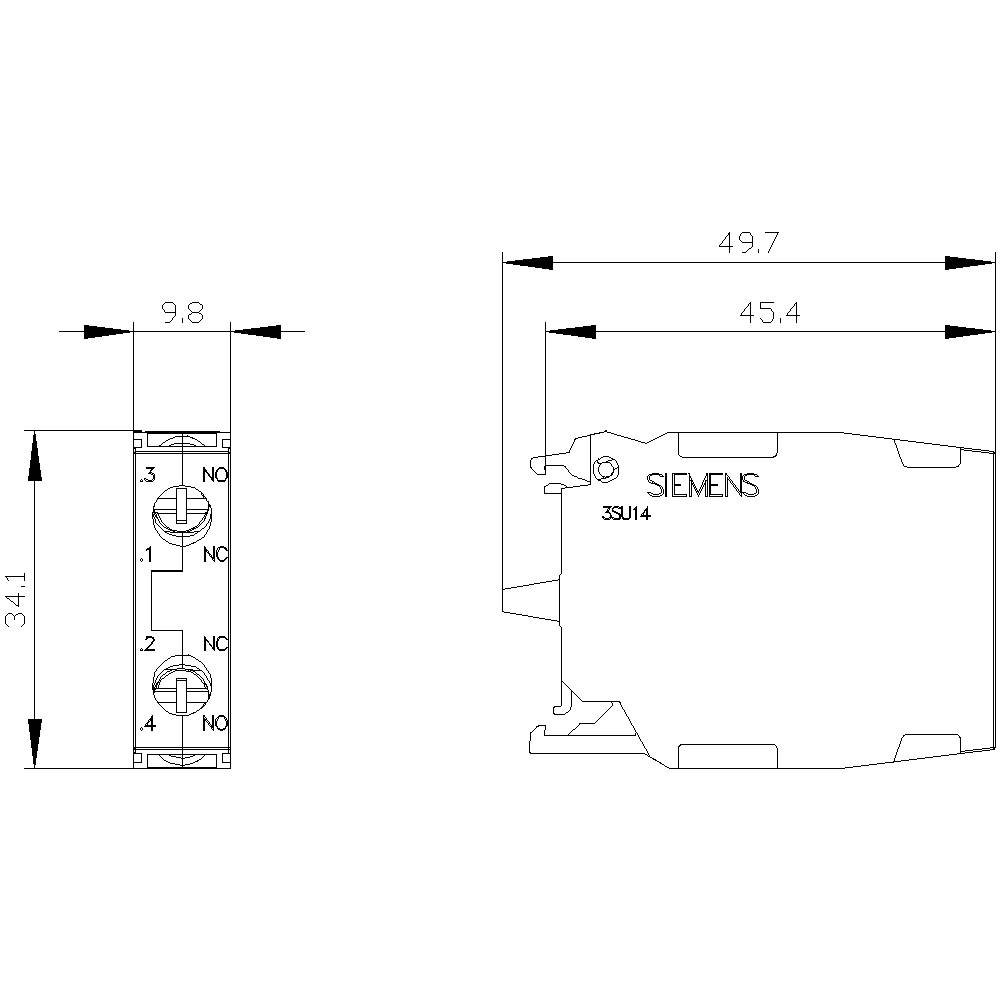

- Bredde
9.8 mm
- H
34 mm
- D
49.7 mm
- Dim.
(B x H x T) 9.8 x 34 x 49.7 mm
- Indhold
1 stk
- RoHS-godkendt
Ja
- Producentfarve
Flerfarvet
- Vægt
0.0180 kg
Front fastening
6 A
Screw connection
0
1
1
0
- UKCA
Ja
Dokumenter og downloads
Datablad
Datablad 2260280 Siemens 3SU1400-1AA10-1FA0 Kontaktmodul 500 V DC/AC Passer til mærkerne (relæ): Siemens Piece 1 stk
Instruktioner for brug og sikkerhed
Instruktioner for brug og sikkerhed 2260280 Siemens 3SU1400-1AA10-1FA0 Kontaktmodul 500 V DC/AC Passer til mærkerne (relæ): Siemens Piece 1 stk
Beskrivelse
Contact module with 2 contact elements, 1 NO+1 NC, screw terminal, for front plate mounting Contact module SIRIUS ACT for switching power circuits.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Various switching functions, various types of connection and installation, 1- and 2-pole.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Various switching functions, various types of connection and installation, 1- and 2-pole.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
