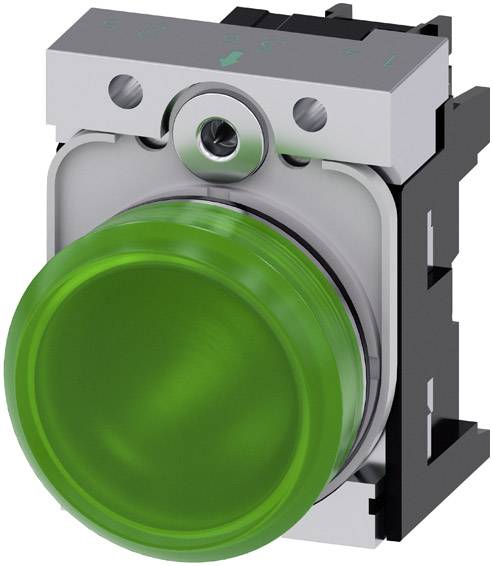

Siemens 3SU1152-6AA40-1AA0 Lysmelder Højglans Grøn 24 V/AC, 24 V/DC 1 stk
EAN:
Fremstillingsnr.
Artikel nr.:
Datablad (PDF)
5 stk.
Antal
Total (175,20 kr. / stk.r)
175,20 kr.
ekskl. moms
Kun 5 stk. tilbage på lager
Tekniske specifikationer
- Produkttype
Lysmelder
- Variant
Metal
- Producentfarve
Grøn
- Driftsspænding
24 V/AC
24 V/DC
- Indbygning-dia.
22 mm
n.rel. (EENRPS00)

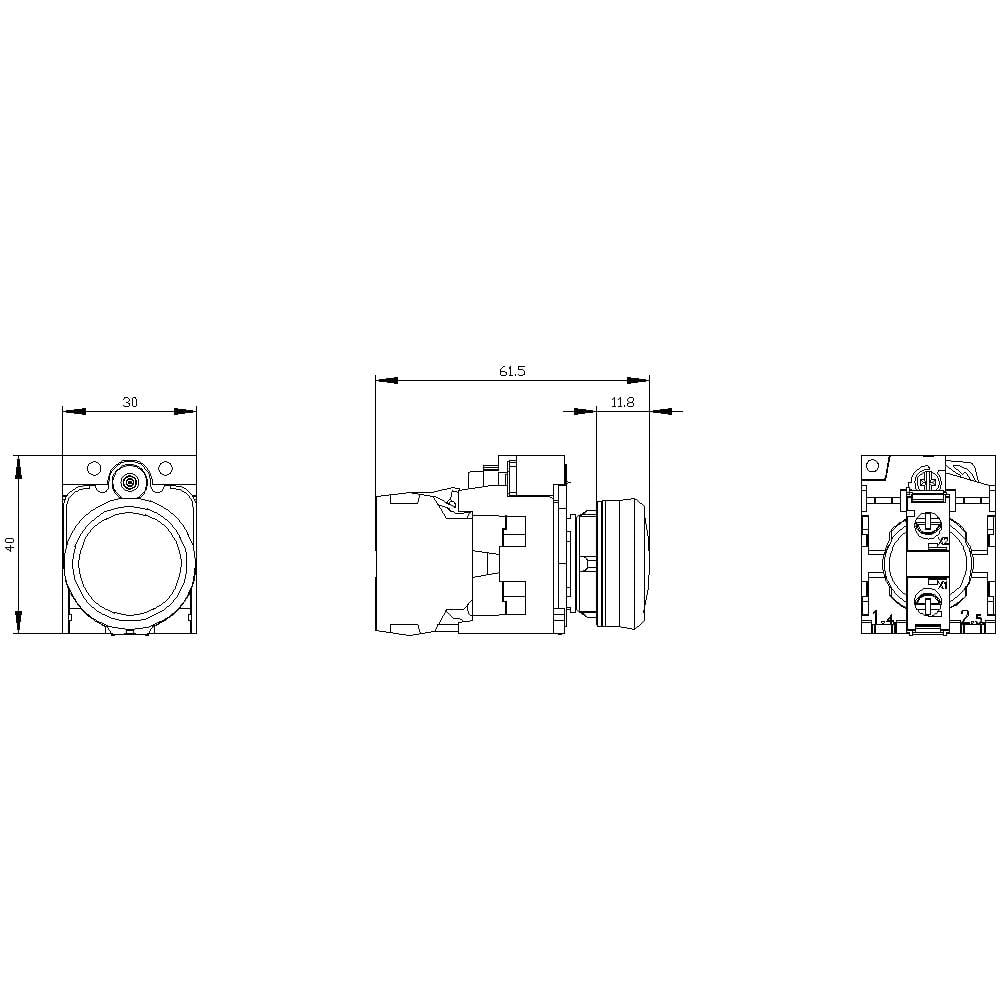

- Dim.
(Ø x H) 29.45 mm x 40 mm
- Tilslutning
Skruer
- Vægt
0.0616 kg
- Indhold
1 stk
- Bredde
30 mm
- H
40 mm
- (Ø)
29.45 mm
- RoHS-godkendt
Ja
- Kontakt/Tast-specifikationer
Højglans
IP66
IP67
IP69/IP69K
- Maks. temperatur
+70 °C
- Min. Temperatur
-25 °C
- Type
3SU1152-6AA40-1AA0
- Inkl. belysningsmiddel
Ja
22.3 mm
AC/DC
1
Other
Other
29.5 mm
11.8 mm
IP67/IP69K
TRUE
Other
FALSE
Other
Other
- UKCA
Ja
Dokumenter og downloads
Datablad
Datablad 1379607 Siemens 3SU1152-6AA40-1AA0 Lysmelder Højglans Grøn 24 V/AC, 24 V/DC 1 stk
Datablad 1379607 Siemens 3SU1152-6AA40-1AA0 Lysmelder Højglans Grøn 24 V/AC, 24 V/DC 1 stk
Instruktioner for brug og sikkerhed
Instruktioner for brug og sikkerhed 1379607 Siemens 3SU1152-6AA40-1AA0 Lysmelder Højglans Grøn 24 V/AC, 24 V/DC 1 stk
Information
Information 1379607 Siemens 3SU1152-6AA40-1AA0 Lysmelder Højglans Grøn 24 V/AC, 24 V/DC 1 stk
Beskrivelse

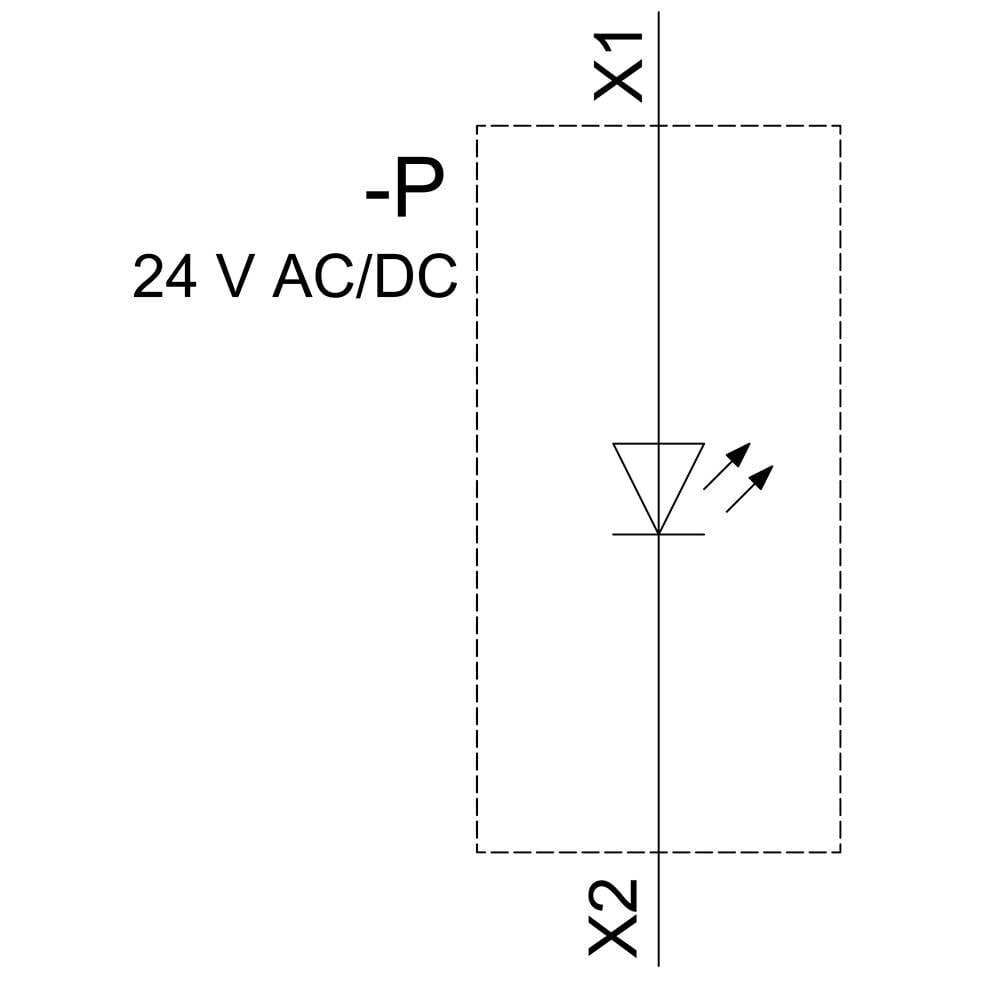

Indicator lights, 22 mm, round, metal, shiny, green, lens, smooth, with holder, LED module with integrated LED 24 V AC/DC, screw terminal Indicator lights SIRIUS ACT for signaling switching states or faults in systems with high luminosity, thanks to energy-efficient LED technology.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, different voltage variants.
Note: Complete unit, delivery includes holders and modules.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, different voltage variants.
Note: Complete unit, delivery includes holders and modules.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
