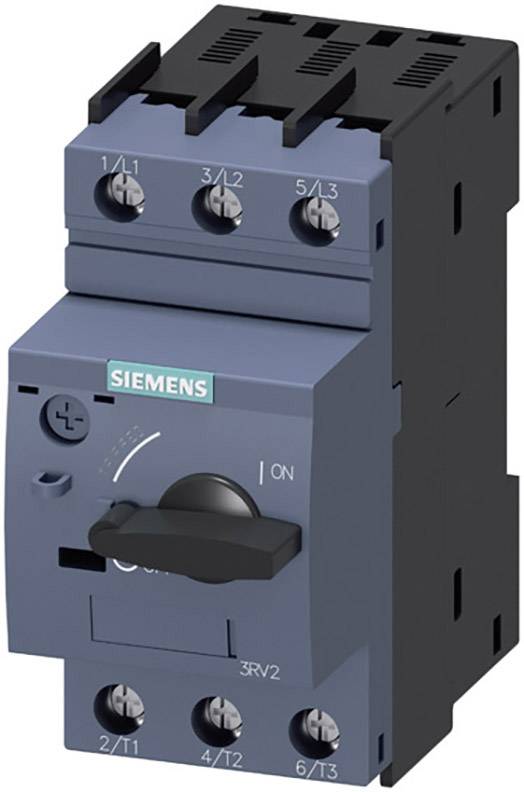

Siemens 3RV2011-4AA10 Effektafbryder 1 stk Indstillingsområde (strøm): 10 - 16 A Koblingsspænding (max.): 690 V/AC (B x
EAN:
Fremstillingsnr.
Artikel nr.:
Produkttype
Effektafbryder
Indstillingsområde strøm
16 A
Tilslutning
Skruer
Emballage-type
Piece
Type
3RV2011-4AA10
Datablad (PDF)
1 stk.
Antal
Total (600,00 kr. / stk.r)
600,00 kr.
ekskl. moms
Gratis fragt
Kun 1 stk. tilbage på lager
Tekniske specifikationer
- Emballage-type
Piece
- Produkttype
Effektafbryder
- Type
3RV2011-4AA10
- Størrelse
S00
- Indstillingsområde strøm (min.)
10 A
- Indstillingsområde strøm
16 A
- Indstillingsområde (strøm)
10 - 16 A
- Poltal
3-polet
- Koblingsspænding (max.)
690 V/AC
- Passer til serie
Siemens Sirius serie
- Passer til mærkerne
Siemens
- Monteringstype
DIN-skinne
- Min. Temperatur
-20 °C
- Maks. temperatur
+60 °C
- Specifikationer
med hjælpekontakt
- Tilslutning
Skruer
IP20
- D
97 mm
- Bredde
45 mm
- H
97 mm
- Dim.

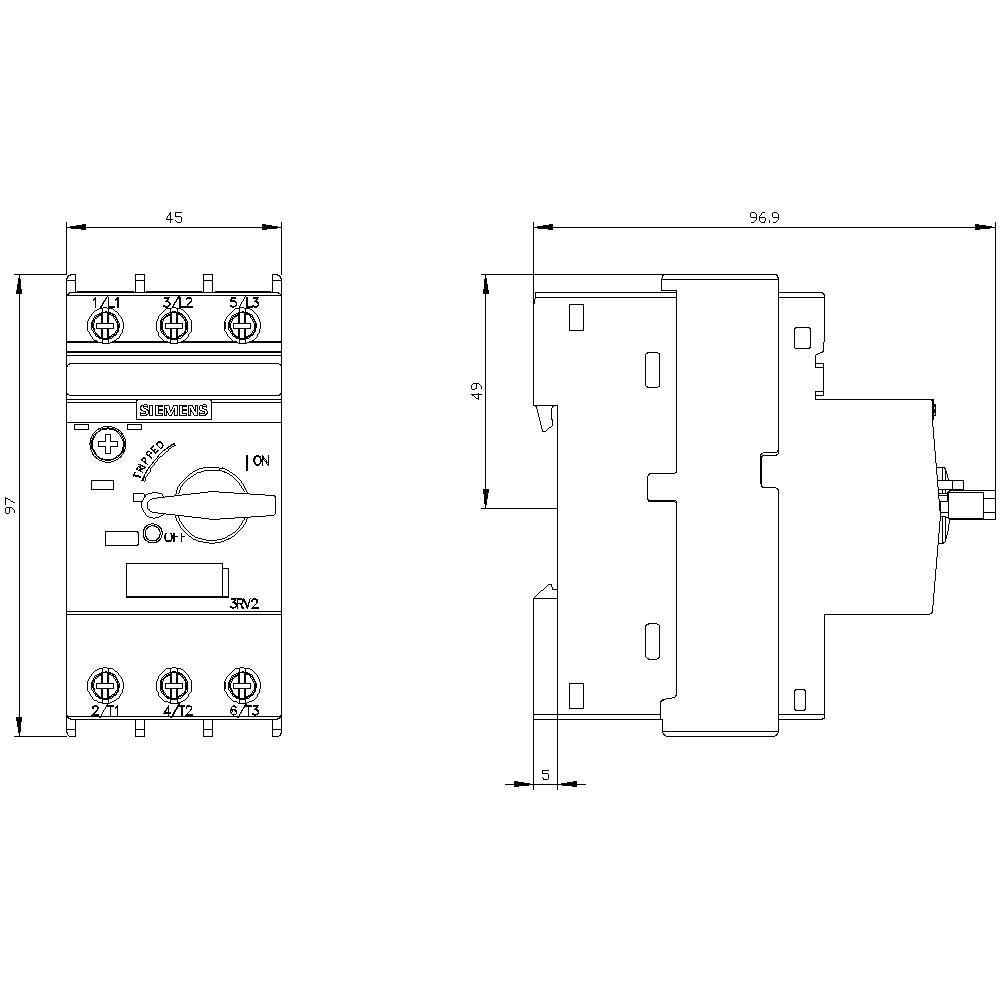

(B x H x T) 45 x 97 x 97 mm
- Indhold
1 stk
- RoHS-godkendt
Ja
- Vægt
0.36
45
97 mm
97 mm
7.5 kW
FALSE
16 A
FALSE
3
690-690 V
10-16 A
IP20
TRUE
Screw connection
Turn button
Magnetic
4 kW
55 kA
TRUE
Built-in device fixed built-in technique
- UKCA
Ja
Dokumenter og downloads
Datablad
Datablad 1430992 Siemens 3RV2011-4AA10 Effektafbryder 1 stk Indstillingsområde (strøm): 10 - 16 A Koblingsspænding (max.): 690 V/AC (B x
Datablad 1430992 Siemens 3RV2011-4AA10 Effektafbryder 1 stk Indstillingsområde (strøm): 10 - 16 A Koblingsspænding (max.): 690 V/AC (B x
Instruktioner for brug og sikkerhed
Instruktioner for brug og sikkerhed 1430992 Siemens 3RV2011-4AA10 Effektafbryder 1 stk Indstillingsområde (strøm): 10 - 16 A Koblingsspænding (max.): 690 V/AC (B x
Beskrivelse

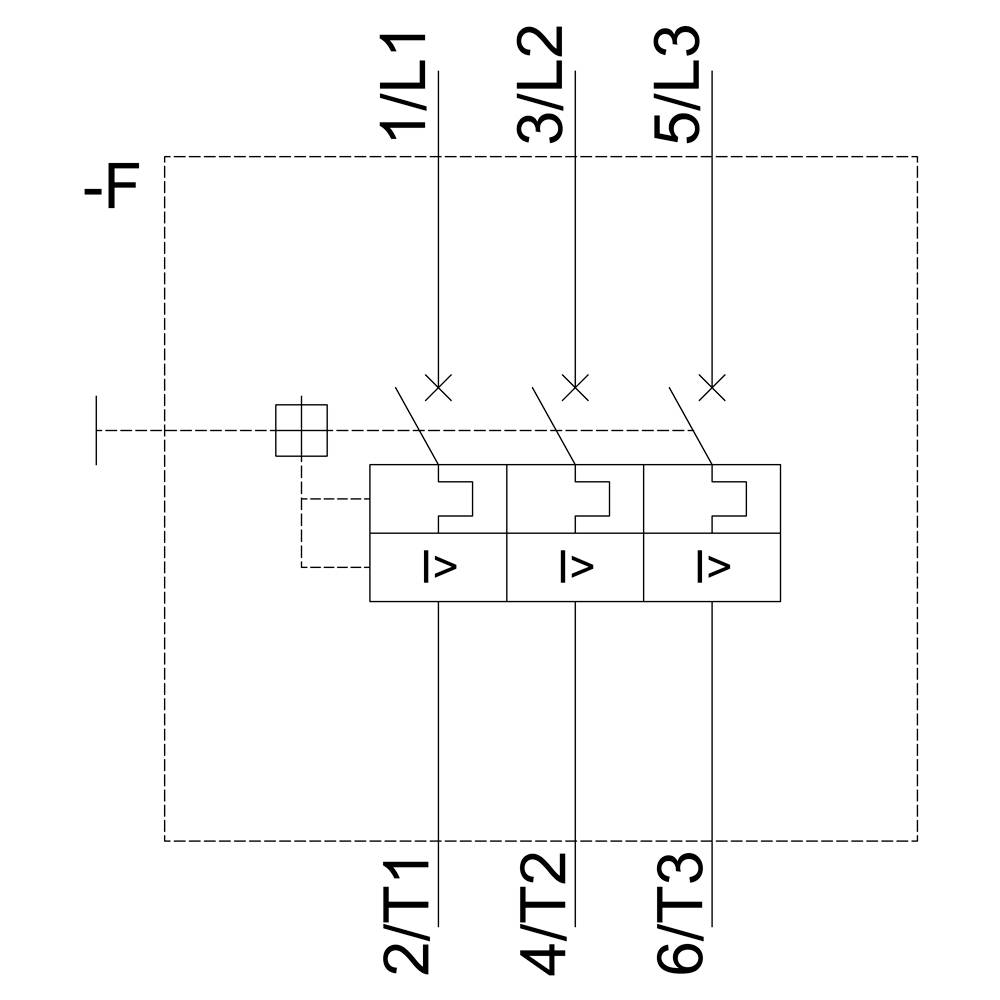

Circuit breaker size S00 for motor protection, CLASS 10 A-release 10...16 A N-release 208 A screw terminal Standard switching capacity Circuit breaker SIRIUS 3RV2 For motor protection for the reliable shutdown in the event of a short-circuit and for protecting the loads and system against overload, and for safe isolation of the system from the network.
Thanks to their low heat loss, the compact and climate-resistant circuit breakers are optimized for use in load feeders, and also for IE3/IE4 motors, of course, and equally for the switching of direct current. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX or IEC Ex) are a matter of course.
Device versions are available for motor protection (also with overload relay function), plant protection, short-circuit protection of starter combinations, transformer protection, as main and EMERGENCY OFF switches and for use in IT networks. They are available with screw or spring-type terminals for fast, maintenance-free and vibration-proof connection, and optionally with integral auxiliary switch.

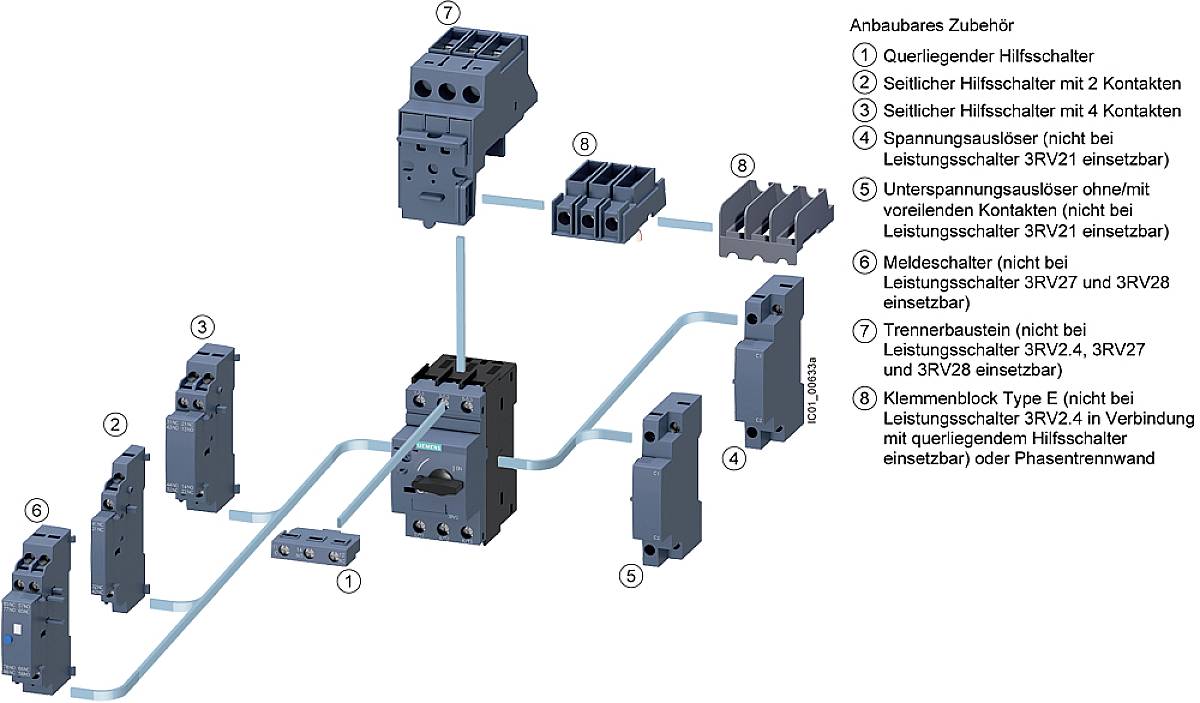

The comprehensive range of accessories, such as auxiliary switches, auxiliary releases, signaling switches etc. is standardized for all sizes. The use of different energy infeed options, such as the associated SIRIUS 3RV29 infeed system, considerably reduces the main circuit wiring.
The 3RV2 circuit breakers replace the well-proven 3RV1 series.
Simple, efficient and always up to date - SIRIUS modular system.
Thanks to their low heat loss, the compact and climate-resistant circuit breakers are optimized for use in load feeders, and also for IE3/IE4 motors, of course, and equally for the switching of direct current. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX or IEC Ex) are a matter of course.
Device versions are available for motor protection (also with overload relay function), plant protection, short-circuit protection of starter combinations, transformer protection, as main and EMERGENCY OFF switches and for use in IT networks. They are available with screw or spring-type terminals for fast, maintenance-free and vibration-proof connection, and optionally with integral auxiliary switch.
The comprehensive range of accessories, such as auxiliary switches, auxiliary releases, signaling switches etc. is standardized for all sizes. The use of different energy infeed options, such as the associated SIRIUS 3RV29 infeed system, considerably reduces the main circuit wiring.
The 3RV2 circuit breakers replace the well-proven 3RV1 series.
Simple, efficient and always up to date - SIRIUS modular system.
