Siemens 3RV2011-1EA10 Effektafbryder 1 stk 3 x afbryder Indstillingsområde (strøm): 2.8 - 4 A Koblingsspænding (max.): 6
EAN:
Fremstillingsnr.
Artikel nr.:
Produkttype
Effektafbryder
Indstillingsområde strøm
4 A
Kontakttype
3 x afbryder
Tilslutning
Skruer
Type
3RV2011-1EA10
Datablad (PDF)
9 stk.
Antal
Total (520,00 kr. / stk.r)
552,00 kr.
-6 %
520,00 kr.
ekskl. moms
Kun 9 stk. tilbage på lager
Tekniske specifikationer
- Produkttype
Effektafbryder
- Type
3RV2011-1EA10
- Størrelse
S00
- Indstillingsområde strøm (min.)
2.8 A
- Indstillingsområde strøm
4 A
- Indstillingsområde (strøm)
2.8 - 4 A
- Kontakttype
3 x afbryder

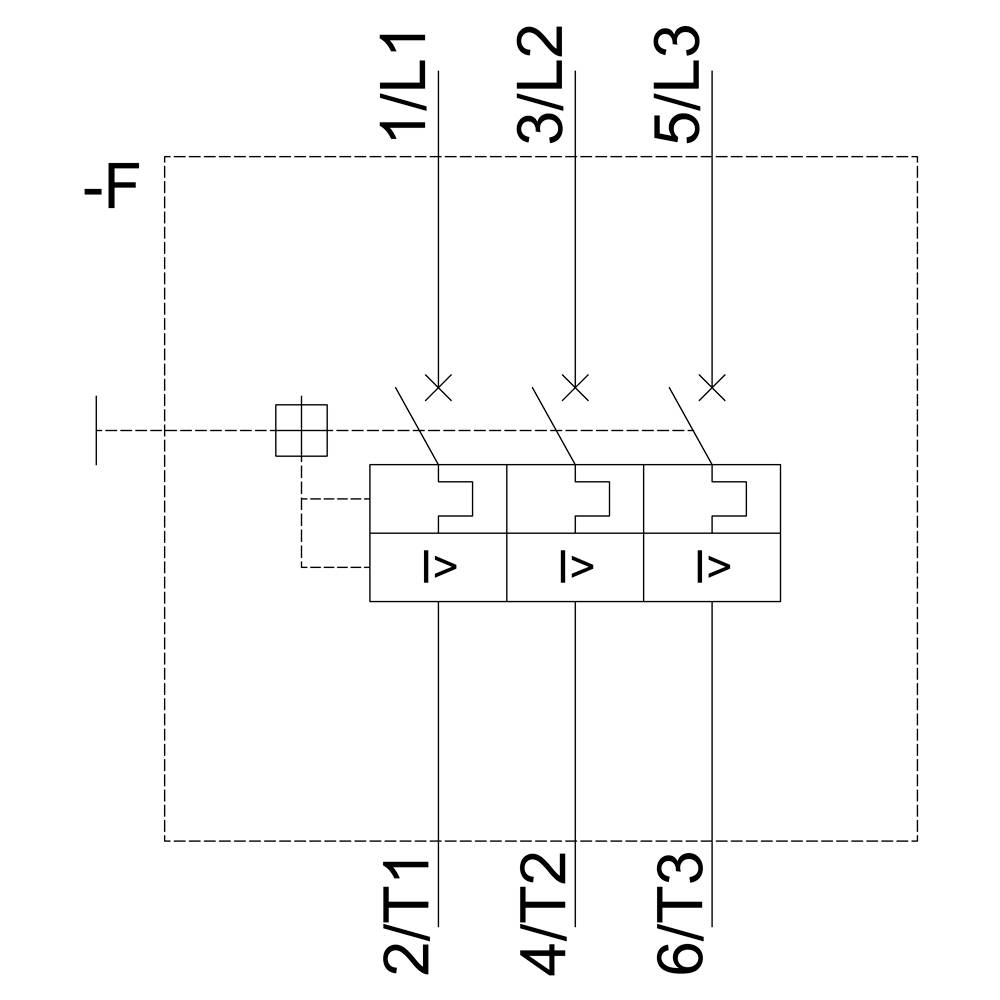

- Poltal
3-polet
- Koblingsspænding (max.)
690 V/AC
- Passer til serie
Siemens Bauform S00
- Passer til mærkerne
Siemens
- Monteringstype
DIN-skinne
- Min. Temperatur
-20 °C
- Maks. temperatur
+60 °C
- Specifikationer
med hjælpekontakt
- Tilslutning
Skruer
IP20
- D
97 mm
- Bredde
45 mm
- H
97 mm

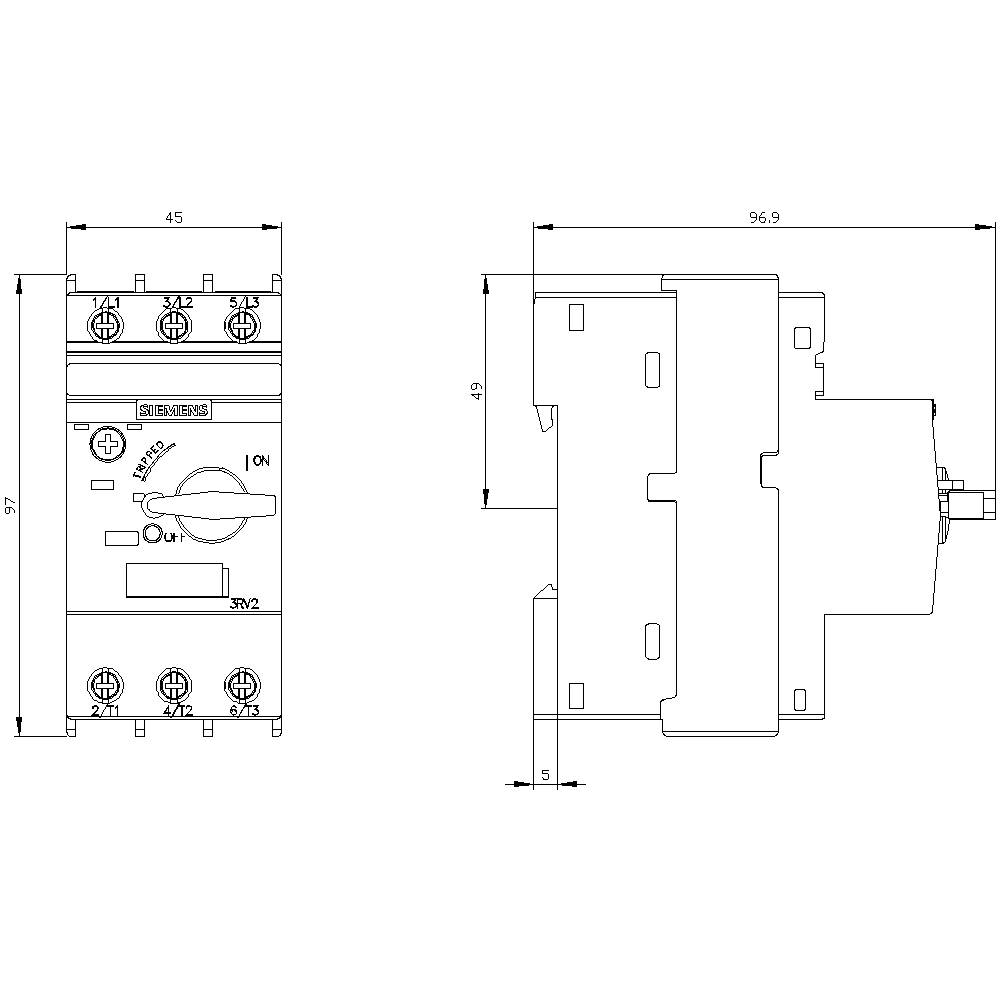

- Dim.
(B x H x T) 45 x 97 x 97 mm
- Indhold
1 stk
- RoHS-godkendt
Ja
45
97 mm
97 mm
1.5 kW
FALSE
4 A
FALSE
3
690-690 V
2.8-4 A
IP20
TRUE
Screw connection
Turn button
Magnetic
0.8 kW
100 kA
TRUE
Built-in device fixed built-in technique
- UKCA
Ja
Dokumenter og downloads
Datablad
Datablad 1431007 Siemens 3RV2011-1EA10 Effektafbryder 1 stk 3 x afbryder Indstillingsområde (strøm): 2.8 - 4 A Koblingsspænding (max.): 6
Datablad 1431007 Siemens 3RV2011-1EA10 Effektafbryder 1 stk 3 x afbryder Indstillingsområde (strøm): 2.8 - 4 A Koblingsspænding (max.): 6
Instruktioner for brug og sikkerhed
Instruktioner for brug og sikkerhed 1431007 Siemens 3RV2011-1EA10 Effektafbryder 1 stk 3 x afbryder Indstillingsområde (strøm): 2.8 - 4 A Koblingsspænding (max.): 6
Beskrivelse
Circuit breaker size S00 for motor protection, CLASS 10 A-release 2.8...4 A N release 52 A screw terminal Standard switching capacity Circuit breaker SIRIUS 3RV2 For motor protection for the reliable shutdown in the event of a short-circuit and for protecting the loads and system against overload, and for safe isolation of the system from the network.
Thanks to their low heat loss, the compact and climate-resistant circuit breakers are optimized for use in load feeders, and also for IE3/IE4 motors, of course, and equally for the switching of direct current. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX or IEC Ex) are a matter of course.
Device versions are available for motor protection (also with overload relay function), plant protection, short-circuit protection of starter combinations, transformer protection, as main and EMERGENCY OFF switches and for use in IT networks. They are available with screw or spring-type terminals for fast, maintenance-free and vibration-proof connection, and optionally with integral auxiliary switch.

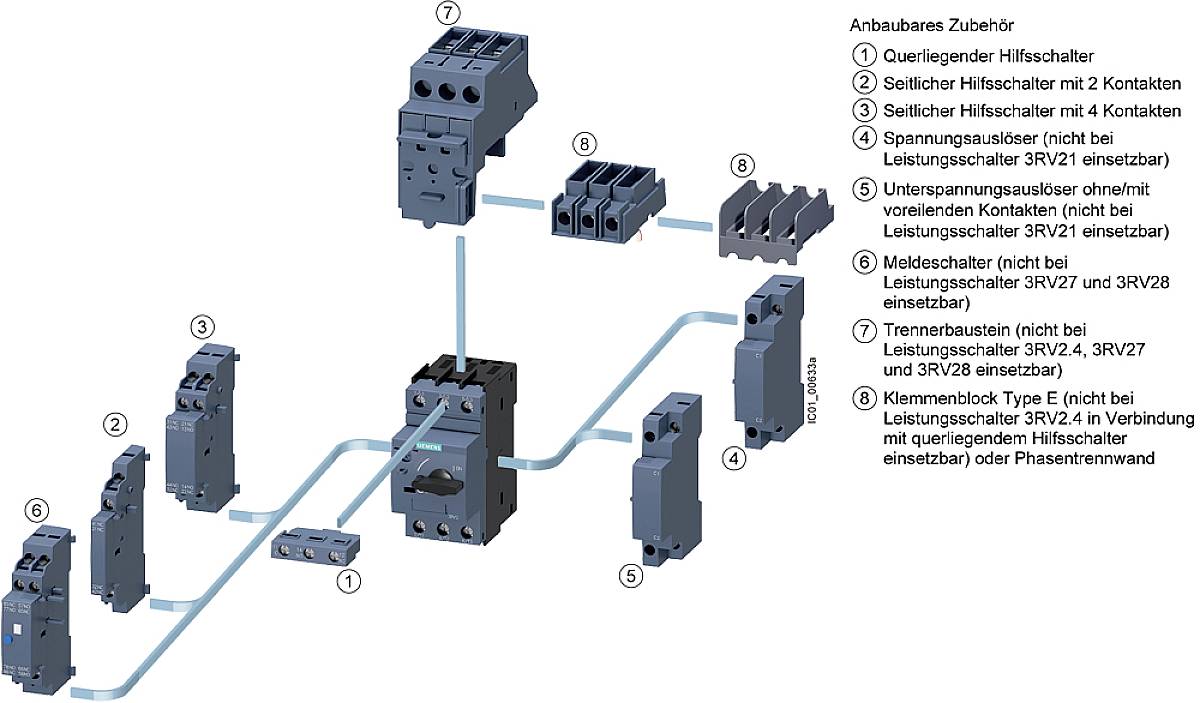

The comprehensive range of accessories, such as auxiliary switches, auxiliary releases, signaling switches etc. is standardized for all sizes. The use of different energy infeed options, such as the associated SIRIUS 3RV29 infeed system, considerably reduces the main circuit wiring.
The 3RV2 circuit breakers replace the well-proven 3RV1 series.
Simple, efficient and always up to date - SIRIUS modular system.
Thanks to their low heat loss, the compact and climate-resistant circuit breakers are optimized for use in load feeders, and also for IE3/IE4 motors, of course, and equally for the switching of direct current. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX or IEC Ex) are a matter of course.
Device versions are available for motor protection (also with overload relay function), plant protection, short-circuit protection of starter combinations, transformer protection, as main and EMERGENCY OFF switches and for use in IT networks. They are available with screw or spring-type terminals for fast, maintenance-free and vibration-proof connection, and optionally with integral auxiliary switch.
The comprehensive range of accessories, such as auxiliary switches, auxiliary releases, signaling switches etc. is standardized for all sizes. The use of different energy infeed options, such as the associated SIRIUS 3RV29 infeed system, considerably reduces the main circuit wiring.
The 3RV2 circuit breakers replace the well-proven 3RV1 series.
Simple, efficient and always up to date - SIRIUS modular system.
