Siemens 3RT2016-1BB41 Kontaktor 3 x afbryder 4 kW 24 V/DC 9 A med hjælpekontakt 1 stk
EAN:
Fremstillingsnr.
Artikel nr.:
Produkttype
Kontaktor
Poltal
3-polet
Nominel spænding
24 V/DC
Belastningsstrøm
9 A
Effekt
4 kW
Datablad (PDF)
97 stk.
Antal
Total (295,20 kr. / stk.r)
295,20 kr.
ekskl. moms
Tekniske specifikationer
- Vægt: 290 g
- Tabseffekt: 0,7 W
- Produkttype
Kontaktor
- Type
3RT2016-1BB41
- Størrelse
S00
- Poltal
3-polet

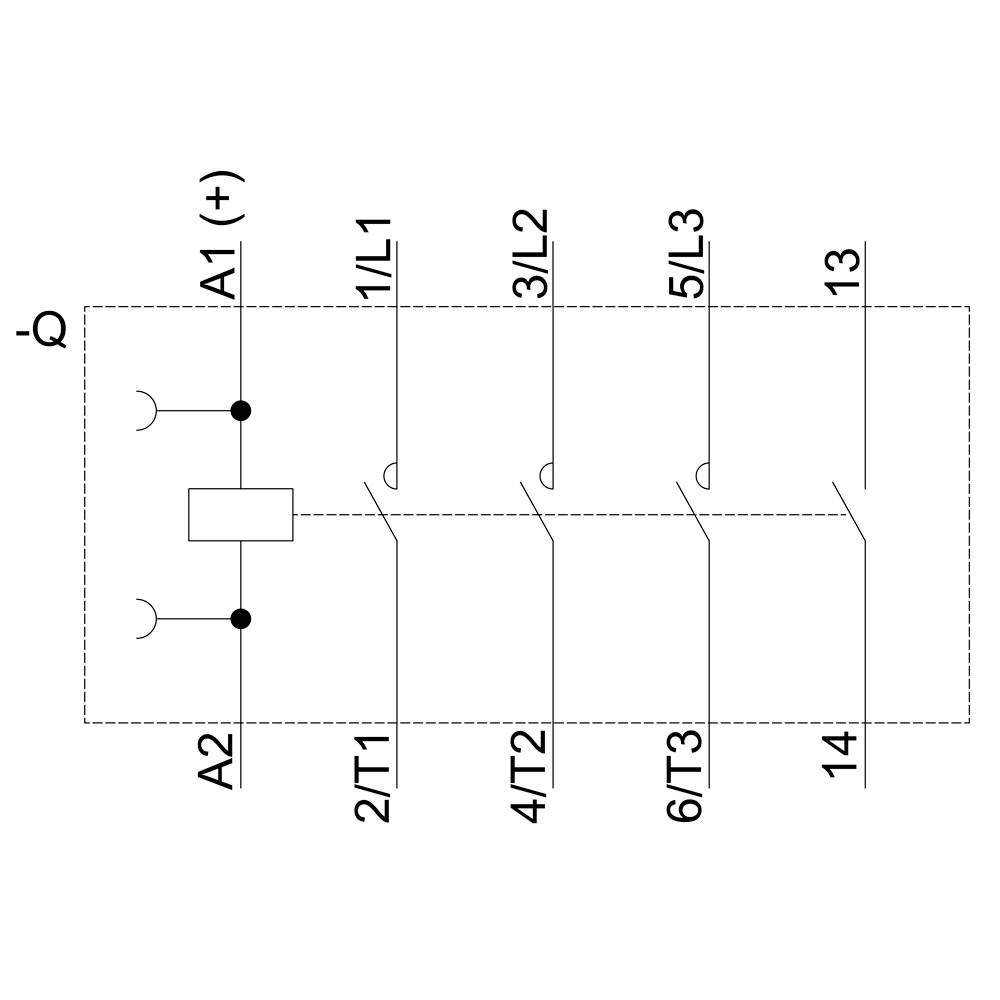

- Kontakttype
3 x afbryder
- Hjælpekontakttype
1 x sluttekontakt
- Nominel spænding
24 V/DC
- Koblingsspænding (max.)
400 V/AC
- Belastningsstrøm
9 A
4 kW
- Specifikationer
med hjælpekontakt
- Monteringstype
DIN-skinne

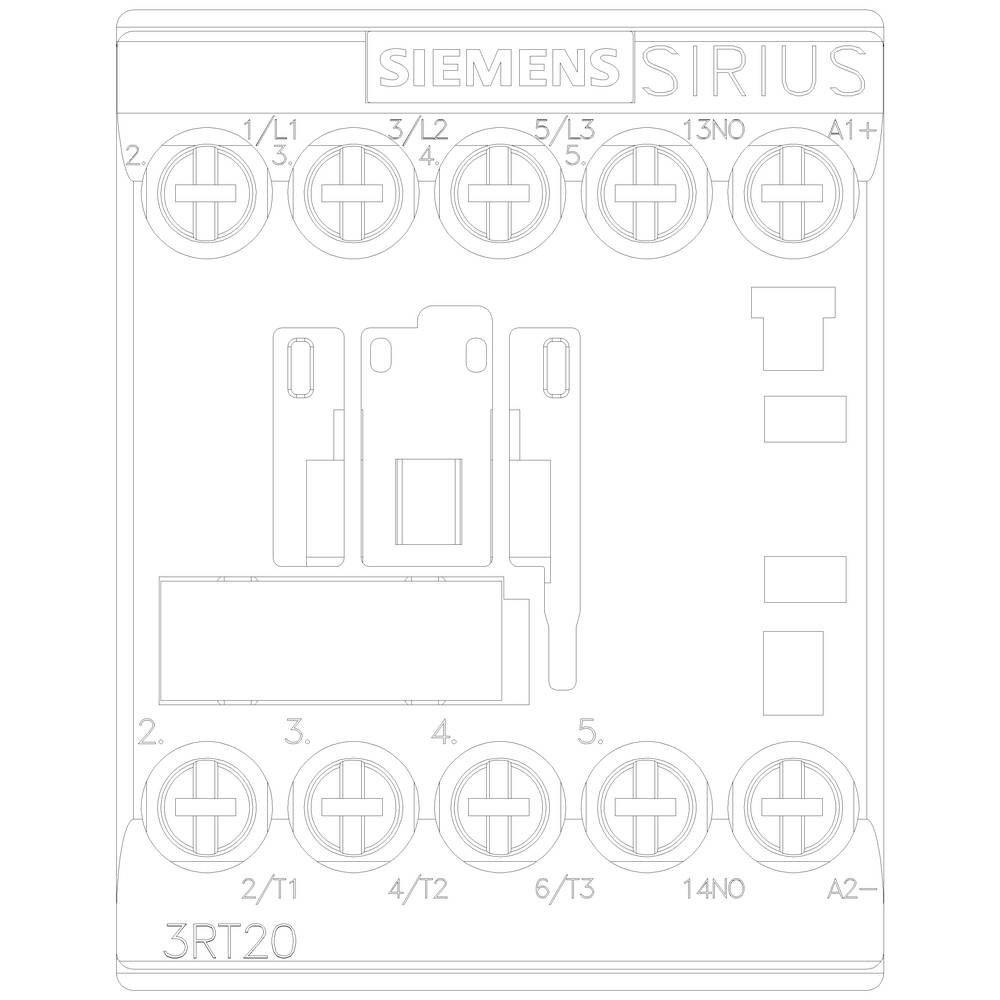

- Tilslutning
Skrueklemme
- Mekanisk levetid
3.0E7
IP20
- Min. Temperatur
-25 °C
- Maks. temperatur
+60 °C

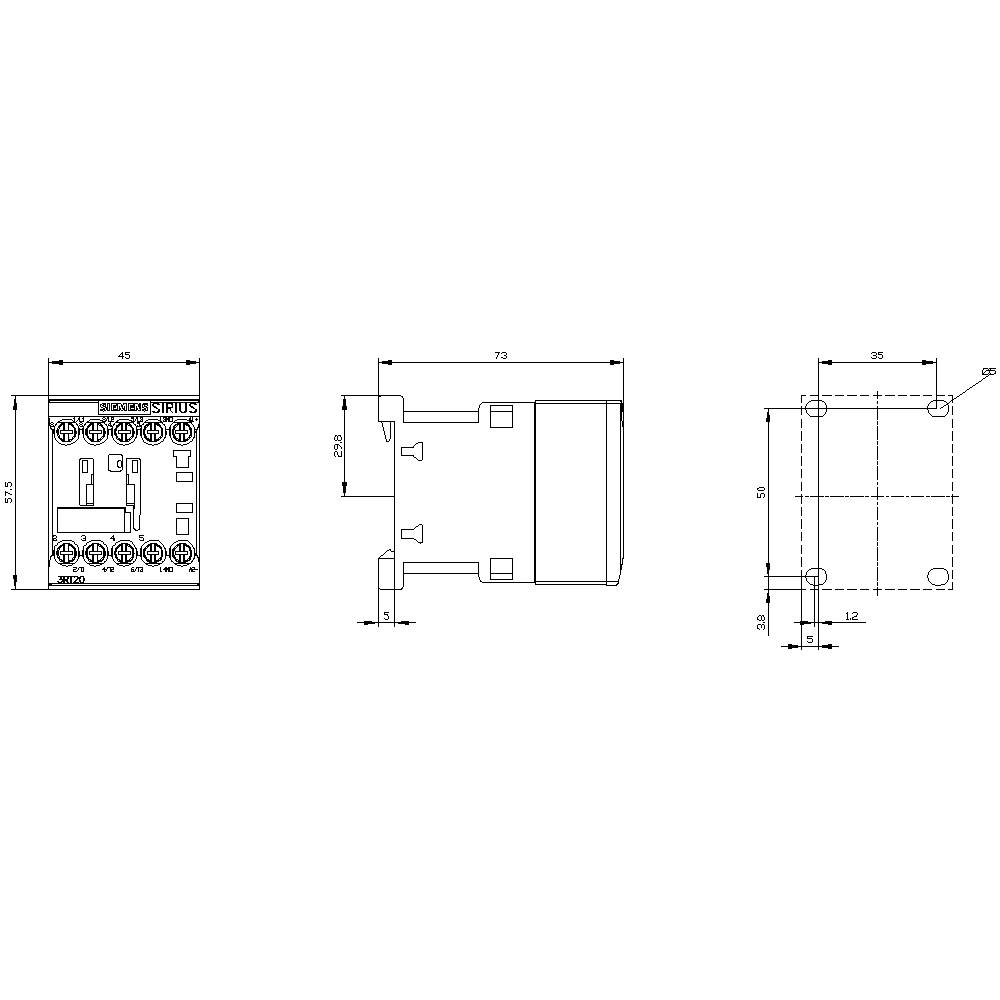

- Bredde
45 mm
- H
58 mm
- D
73 mm
- Dim.
(B x H x T) 45 x 58 x 73 mm
- Indhold
1 stk
- RoHS-godkendt
Ja
- Vægt
0.29
TRUE
4 kW
3
1
9 A
22 A
24-24 V
Screw connection
DC
8.5 A
3.677
- UKCA
Ja
Dokumenter og downloads
Datablad
Datablad 1431024 Siemens 3RT2016-1BB41 Kontaktor 3 x afbryder 4 kW 24 V/DC 9 A med hjælpekontakt 1 stk
Instruktioner for brug og sikkerhed
Instruktioner for brug og sikkerhed 1431024 Siemens 3RT2016-1BB41 Kontaktor 3 x afbryder 4 kW 24 V/DC 9 A med hjælpekontakt 1 stk
Beskrivelse
power contactor, AC-3e/AC-3, 9 A, 4 kW / 400 V, 3-pole, 24 V DC, auxiliary contacts: 1 NO, screw terminal Power contactor SIRIUS 3RT2 for switching motors.
The 3RT2 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. The contactors offer the best connection to the automation level for every application (parallel, via ASi or IO-Link): Integrated auxiliary switches reduce the complexity of your design. The front-panel terminals simplify the wiring. The 3RT2 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready.
They are available in various sizes and in a wide performance range with AC and DC operation. In addition to screw terminals, all the devices are also available with spring-type terminals for fast, maintenance-free and vibration-proof connection.

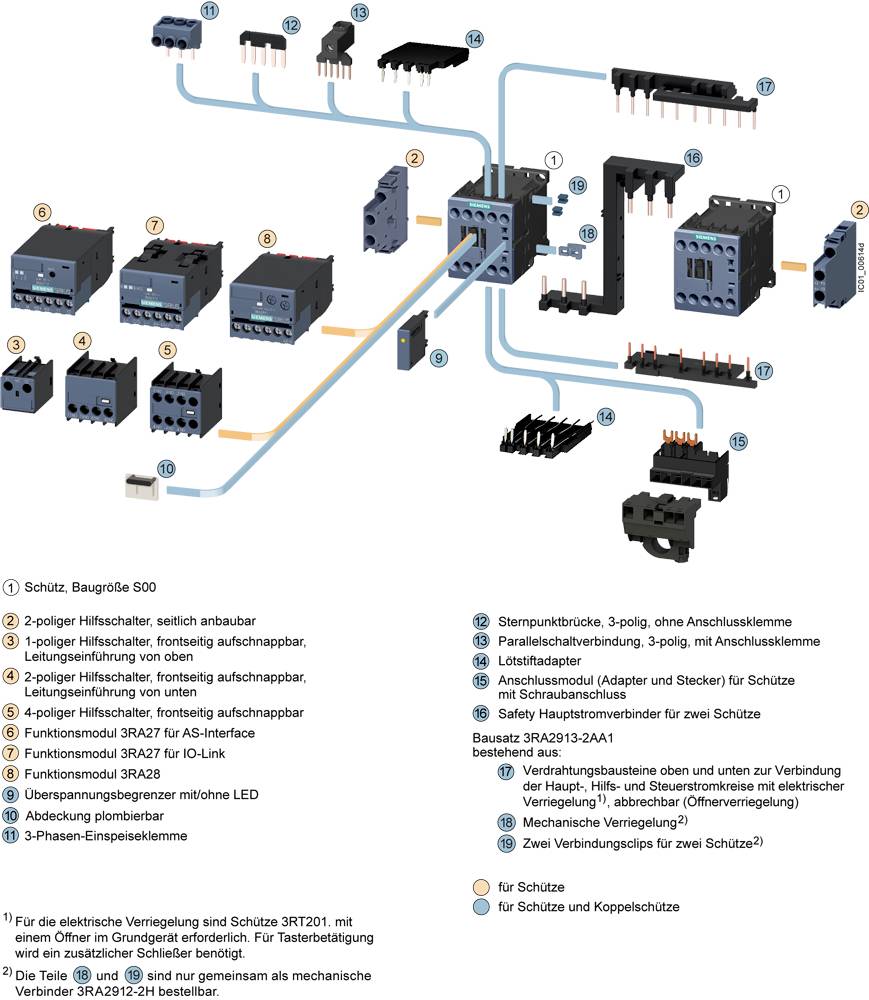

The comprehensive range of accessories, such as auxiliary switches, auxiliary releases etc. is standardized for all sizes. The available link modules, function modules and the SIRIUS 3RV29 infeed system considerably reduce the wiring expense.
The 3RT2 power contactors replace the well-proven 3RT1 series (up to 55 kW).
Simple, efficient and always up to date - SIRIUS modular system.
The 3RT2 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. The contactors offer the best connection to the automation level for every application (parallel, via ASi or IO-Link): Integrated auxiliary switches reduce the complexity of your design. The front-panel terminals simplify the wiring. The 3RT2 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready.
They are available in various sizes and in a wide performance range with AC and DC operation. In addition to screw terminals, all the devices are also available with spring-type terminals for fast, maintenance-free and vibration-proof connection.
The comprehensive range of accessories, such as auxiliary switches, auxiliary releases etc. is standardized for all sizes. The available link modules, function modules and the SIRIUS 3RV29 infeed system considerably reduce the wiring expense.
The 3RT2 power contactors replace the well-proven 3RT1 series (up to 55 kW).
Simple, efficient and always up to date - SIRIUS modular system.
