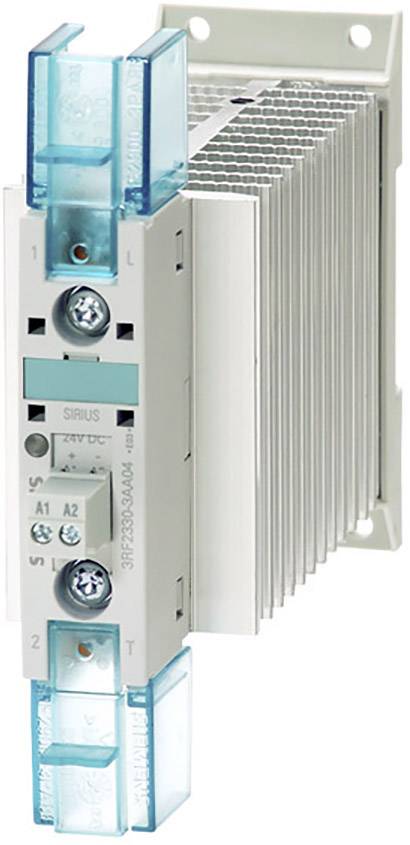

Siemens 3RF2330-3AA04 Halvlederkontaktor Vekslende ved nulspænding 1 x sluttekontakt 30 A 1 stk
EAN:
Fremstillingsnr.
Artikel nr.:
Produkttype
Halvlederkontaktor
Poltal
1-polet
Belastningsstrøm
30 A
Tilslutning
Øsken 5 mm
Øsken 3 mm
Type
3RF2330-3AA04
Datablad (PDF)
Antal
Total (600,00 kr. / stk.r)
600,00 kr.
ekskl. moms
Gratis fragt
Tekniske specifikationer
- Produkttype
Halvlederkontaktor
- Type
3RF2330-3AA04
- Poltal
1-polet
- Koblingsmåde
Vekslende ved nulspænding
- Kontakttype
1 x sluttekontakt
- Styrespænding (min.)
15 V/DC
- Styrespænding (maks)
24 V/DC
- Styrespænding-område
15 - 24 V/DC
- Koblingsspænding (min. )
48 V/AC
- Koblingsspænding (max.)
460 V/AC
- Belastningsstrøm
30 A
- Monteringstype
DIN-skinne
- Tilslutning
Øsken 5 mm
Øsken 3 mm
- Reaktionstid
1 ms
IP00
- Min. Temperatur
-25 °C
- Maks. temperatur
+60 °C

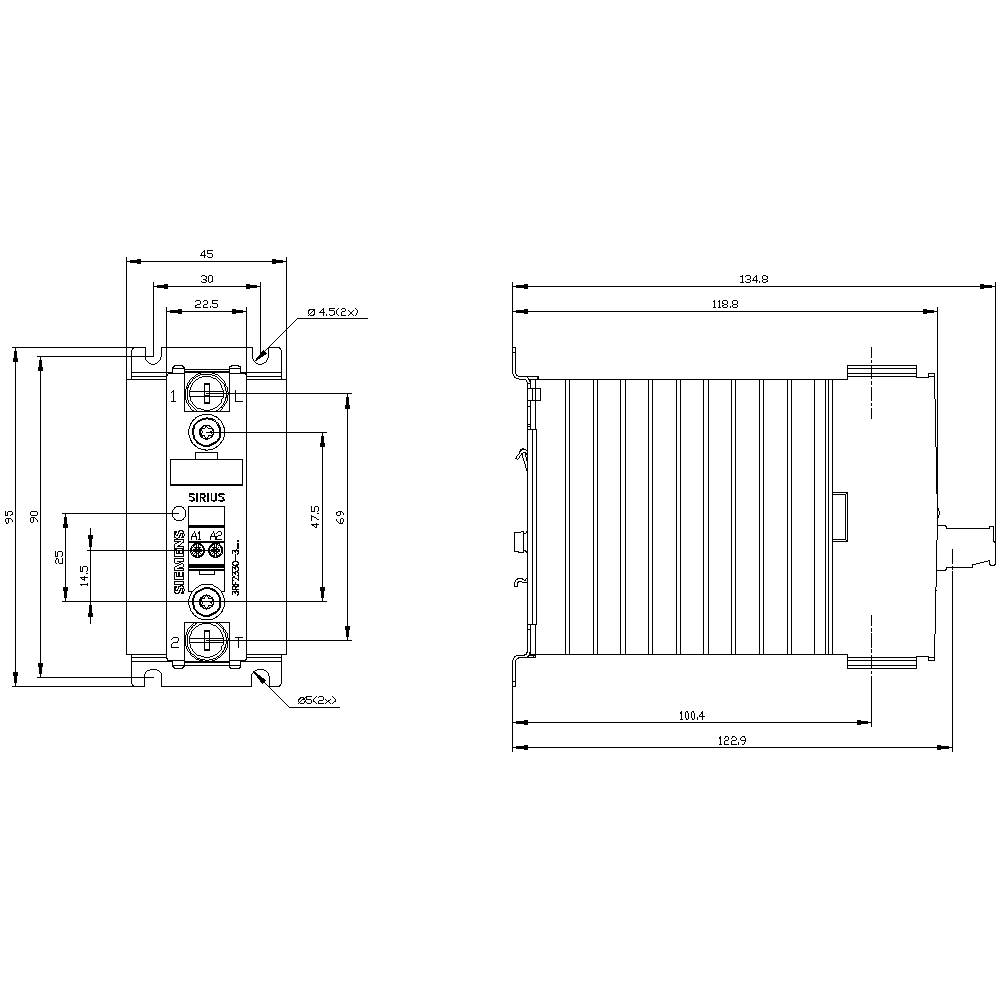

- Bredde
45 mm
- H
100 mm
- D
139 mm
- Dim.
(B x H x T) 45 x 100 x 139 mm
- Indhold
1 stk
- RoHS-godkendt
Ja
1
TRUE
15-24 V
30 A
DC
30 A
- UKCA
Ja
Dokumenter og downloads
Datablad
Datablad 1430850 Siemens 3RF2330-3AA04 Halvlederkontaktor Vekslende ved nulspænding 1 x sluttekontakt 30 A 1 stk
Instruktioner for brug og sikkerhed
Instruktioner for brug og sikkerhed 1430850 Siemens 3RF2330-3AA04 Halvlederkontaktor Vekslende ved nulspænding 1 x sluttekontakt 30 A 1 stk
Beskrivelse
Solid-state contactor 1-phase 3RF2 AC 51 / 30 A / 40 °C 48-460 V / 24 V DC Ring cable connection solid-state contactor SIRIUS 3RF23 for switching resistive/inductive loads, e.g. of heaters or valves in a bottling plant.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. As the heat sink is already integrated, they can be used directly in the control cabinet. The compact design saves space on the mounting rail. The solid-state contactors can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state contactors are available as single-phase or three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. As the heat sink is already integrated, they can be used directly in the control cabinet. The compact design saves space on the mounting rail. The solid-state contactors can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state contactors are available as single-phase or three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
