Siemens 3RF2320-1DA22 Halvlederkontaktor 1 x sluttekontakt 20 A Kortslutningssikker via B-Automat 1 stk
EAN:
Fremstillingsnr.
Artikel nr.:
Produkttype
Halvlederkontaktor
Poltal
1-polet
Belastningsstrøm
20 A
Tilslutning
Skrueklemme
Type
3RF2320-1DA22
Datablad (PDF)
Antal
Total (712,00 kr. / stk.r)
712,00 kr.
ekskl. moms
Gratis fragt
Tekniske specifikationer
- Produkttype
Halvlederkontaktor
- Type
3RF2320-1DA22
- Poltal
1-polet
- Kontakttype
1 x sluttekontakt
- Styrespænding (min.)
110 V/AC
- Styrespænding (maks)
230 V/AC
- Styrespænding-område
110 - 230 V/AC
- Koblingsspænding (min. )
24 V/AC
- Koblingsspænding (max.)
230 V/AC
- Belastningsstrøm
20 A
- Specifikationer
Kortslutningssikker via B-Automat
- Monteringstype
DIN-skinne
- Tilslutning
Skrueklemme
- Reaktionstid
40 ms
IP20
- Min. Temperatur
-25 °C
- Maks. temperatur
+60 °C

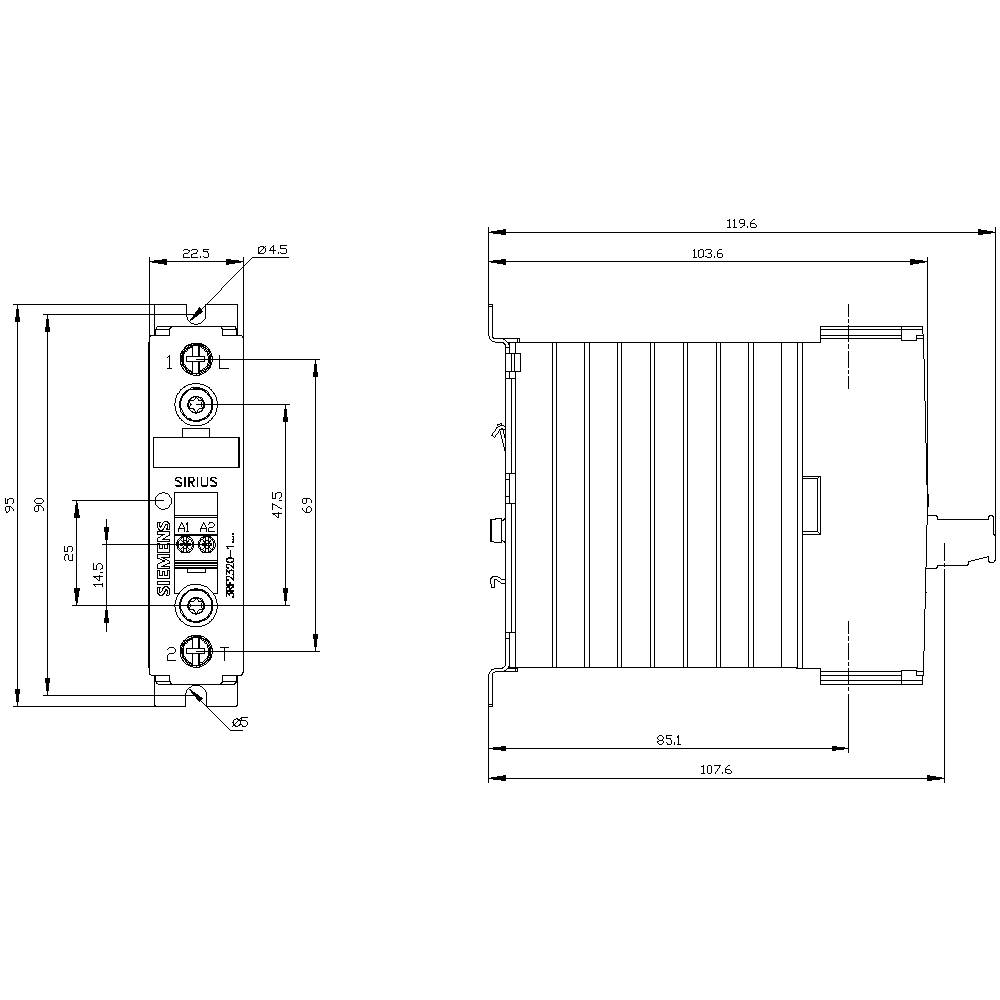

- Bredde
22.5 mm
- H
100 mm
- D
123.5 mm
- Dim.
(B x H x T) 22.5 x 100 x 123.5 mm
- Indhold
1 stk
- RoHS-godkendt
Ja
1
TRUE
20 A
AC
20 A
- UKCA
Ja
Dokumenter og downloads
Datablad
Datablad 1430838 Siemens 3RF2320-1DA22 Halvlederkontaktor 1 x sluttekontakt 20 A Kortslutningssikker via B-Automat 1 stk
Instruktioner for brug og sikkerhed
Instruktioner for brug og sikkerhed 1430838 Siemens 3RF2320-1DA22 Halvlederkontaktor 1 x sluttekontakt 20 A Kortslutningssikker via B-Automat 1 stk
Beskrivelse
Solid-state contactor 1-phase 3RF2 AC 51 / 20 A / 40 °C 24-230 V / 110-230 V AC short circuit-proof with B miniature circuit breaker solid-state contactor SIRIUS 3RF23 for switching resistive/inductive loads, e.g. of heaters or valves in a bottling plant.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. As the heat sink is already integrated, they can be used directly in the control cabinet. The compact design saves space on the mounting rail. The solid-state contactors can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state contactors are available as single-phase or three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. As the heat sink is already integrated, they can be used directly in the control cabinet. The compact design saves space on the mounting rail. The solid-state contactors can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state contactors are available as single-phase or three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
