Adafruit 1790 Udvidelsesboard Passer til (single-board computer) Arduino 1 stk
EAN:
Fremstillingsnr.
Artikel nr.:
Datablad (PDF)
2 stk.
Antal
Total (375,20 kr. / stk.r)
375,20 kr.
ekskl. moms
Kun 2 stk. tilbage på lager
Højdepunkter og detaljer

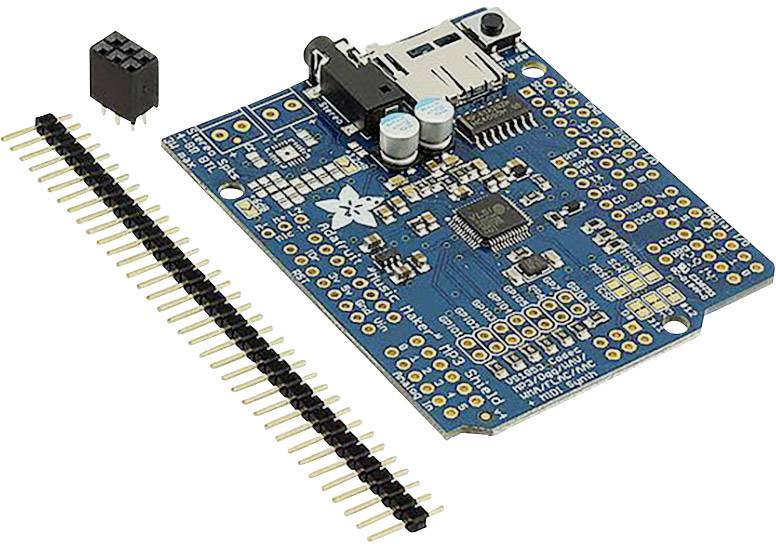

Arduino MP3 Shield Music Maker
- Processor
- Harddisk / arbejdshukommelse
- Grafik
Tekniske specifikationer
- Produkttype
Udvidelsesboard
- Passer til
Arduino
- Tool-type
Expansion-board
- Indhold
1 stk
- Interfaces
SPI™
- L
70 mm
- Bredde
53 mm
- Antal udgange
1 x
- Min. driftsspænding
3 V
- Driftsspænding maks.
5 V
- UKCA
Ja
Dokumenter og downloads
Datablad
Datablad 1516574 Adafruit 1790 Udvidelsesboard Passer til (single-board computer) Arduino 1 stk
Instruktioner for brug og sikkerhed
Instruktioner for brug og sikkerhed 1516574 Adafruit 1790 Udvidelsesboard Passer til (single-board computer) Arduino 1 stk
Beskrivelse
This powerful shield features the VS1053, an encoding/decoding (codec) chip that can decode a wide variety of audio formats such as MP3, AAC, Ogg Vorbis, WMA, MIDI, FLAC, WAV (PCM and ADPCM). It can also be used to record audio in both PCM (WAV) and compressed Ogg Vorbis. You can even adjust bass, treble, and volume digitally. All this functionality is implemented in a light-weight SPI interface so that any Arduino can play audio from an SD card. There's also a special MIDI mode that you can boot the chip into that will read 'classic' 31250Kbaud MIDI data from an Arduino pin and act like a synth/drum machine with dozens of built-in drum and sample effects! This version of the shield only has stereo line/headphone output.
